Home  >  Compound / Metallurgical / Inverted & More  >  Professional Trinocular Polarizing Microscope 40x~600x

Professional Trinocular Polarizing Microscope 40x~600x
Click to enlargeProfessional Trinocular Polarizing Microscope 40x~600x

Availability: Usually ships the same business day

M837TRegular price: $2,499.99Sale price: $1,699.99
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminum Carry Case::
Add Vinyl Carrying case::

Photobucket

Photobucket

 photo M837T-4_zpscibl5qnq.jpg

 photo M837T-3_zpsn9jmpteq.jpg

 photo M837T-5_zpshuhahbvo.jpg

Features:

  • Perfect for labs, clinics and universities to investigate the optical properties of specimens
  • Top quality professional optical glass elements
  • 45 inclined 360 swiveling trinocular head

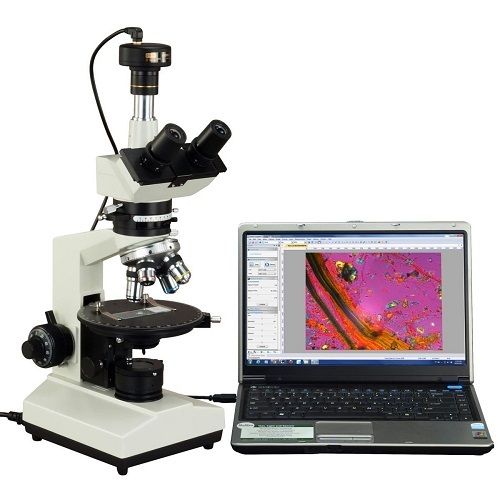

  • Easy to mount USB camera (electronic eyepiece) for demonstrating the images and live videos on your computer
  • Rotatable stage with 360 angle graduations, accurate to 0.1 when using vernier scale

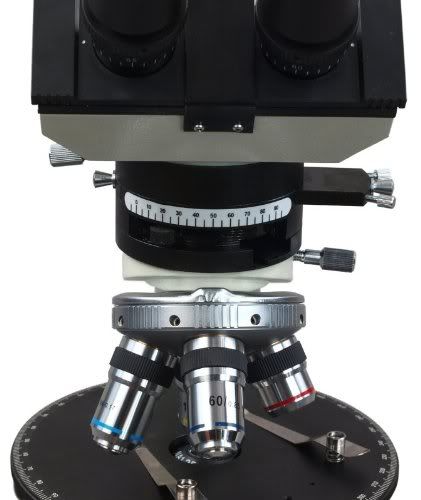

  • Revolving quadruple nosepiece
  • 4 strain-free achromatic objectives, DIN 4x, 10x, 40x(s) and 60x(s)
  • A pair of wild field eyepieces (one with crosshair reticle)
  • NA 1.25 Abbe condenser with iris diaphragm & filters
  • Removable analyzer with 0 - 90 graduations
  • Easy sliding-in/out Bertrand lens

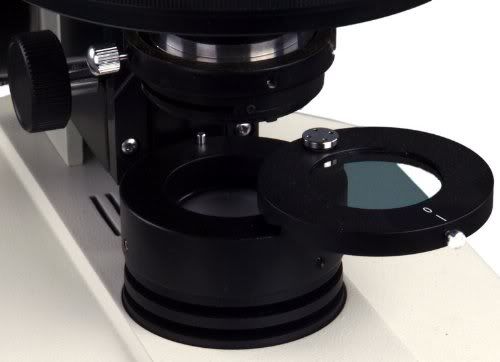

  • Easy swinging-in/out polarizer

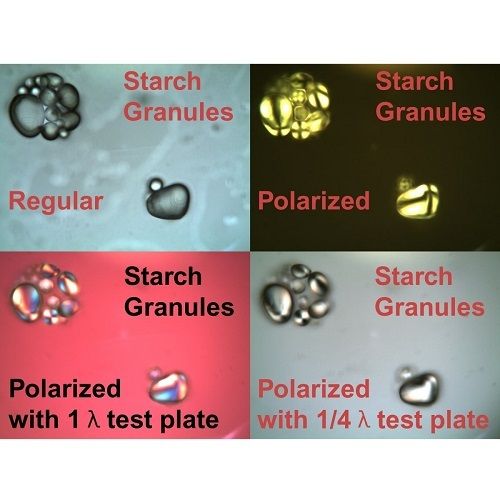

  • 3 compensators: one quarter-wave plate, one tint plate and one quartz wedge
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • High resolution images over a wide field view
  • Coaxial coarse and fine focus adjustment, focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Variable intensity illumination
  • Sturdy metal mechanical framework
  • Rack and pinion adjustment condenser
  • Manufacturer in business 30+ years

Specifications:

Model: M837T

  • Head: Trinocular, 45 inclined 360 rotatable
  • Nosepieces: Quadruple
  • Eyepieces: a pair of wide field WF10X/18 (one with crosshair reticle)
  • Objectives: Strain free achromatic, DIN 4x, 10x, 40x (spring), 60x (spring)
  • Total magnification: 40x-100x-400x-600x
  • Condenser: NA1.25 Abbe Condenser with iris diaphragm & filter holder
  • Stage: Rotatable, with 360 angle graduations and a vernier scale, accurate to 0.1 Diameter 160 mm
  • Analyzer: Removable, 0- 90 graduation, with built in Bertrand lens (easy to slide in and out of the light path)
  • Polarizer: mounted on the top of the illumination housing, easy to swing in and out of the light path
  • Compensators: quarter-wave plate (1/4 λ plate),tint plate (1 λ plate), and one quartz wedge
  • Focus adjustment: Coaxial coarse and fine adjusting knobs on both sides
  • Camera port: Standard 23.2 mm
  • Illumination: Halogen Lamp, 6V/20W, brightness adjustable
  • Power supply: 110V/60Hz (US and Canada)
  • Dimension: 7x10x18 in (18x25x46 cm)
  • Net weight: 14 lb (6.35 kg)

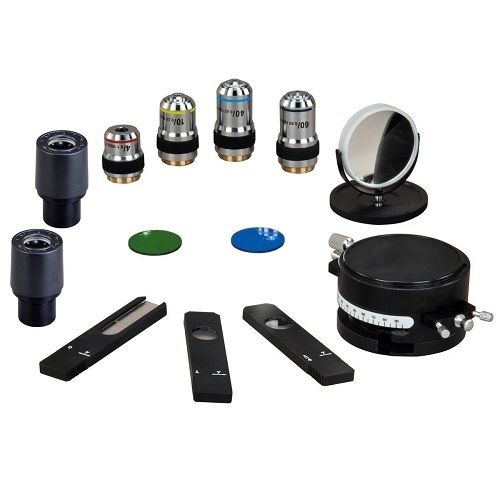

Packing List:

  • One trinocular microscope head
  • One microscope body with frame and base
  • One eyepiece: WF10X/18
  • One eyepiece: WF10X/18 with crosshair reticle
  • Four objectives:Strain free achromatic, DIN 4x, 10x, 40x (S), and 60x (S)
  • One analyzer/Bertrand lens module
  • Three compensators: one quarter-wave plate (1/4 λ plate),one tint plate (1 λ plate), and one quartz wedge
  • One photo tube
  • Color filters
  • One power cord (US and Canada standard)
  • One mirror for power outage
  • One Allen key
  • Extra halogen bulb: 6V/20W
  • Extra fuses
