Home  >  Compound / Metallurgical / Inverted & More  >  Teach / Training Head Compound Microscope 40x~1000x

Teach / Training Head Compound Microscope 40x~1000x
Click to enlargeTeach / Training Head Compound Microscope 40x~1000x

Availability: Usually ships the same business day

TM-824Regular price: $1,400.00Sale price: $849.99
USB Digital Camera::

Teaching Microscope

Teaching Microscope

Features:

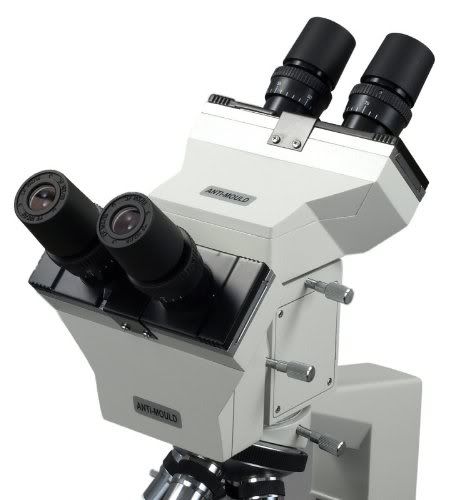

  • Two binocular heads: perfect for education and demonstration at labs, clinics, universities, and high schools
  • High quality professional optical glass elements
  • 45°inclined 360°swiveling binocular head
  • Easy to mount CCD camera (electronic eyepiece)
  • 4 levels of magnification: 40x-100x-400x-1000x
  • 4 achromatic objectives DIN 4x, 10x, 40x(S), 100x(S,Oil)
  • 4 eyepieces: WF10X/18
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Variable intensity illumination
  • High resolution images over a wide field view
  • Metal framework
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides

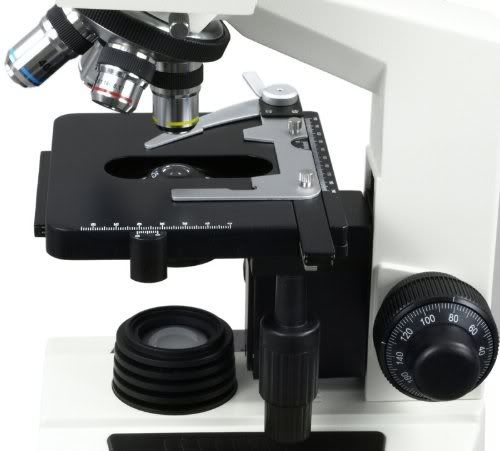

  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Manufacturer in business 30+ years


Specifications:



  • Model: TM-824
  • Two swiveling binocular heads: 45°Inclined 360°
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X/18
  • Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • Total magnification: 40x-100x-400x-1000x
  • Transmitted (lower) illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 110V/60Hz worldwide range (US and Canada)
  • Dimension: 16" x 12" x 12" (40.5cm x 30.5cm x 25.5cm)
  • Net weight: 12.6 lb (5.7kg)
  • Package weight 20 lb


Packing List:



  • Double binocular-head microscope with 4 DIN objectives
  • Eyepieces: 4 WF10X/18
  • A bottle of Immersion oil
  • Power cord (US and Canada standard)
  • Mirror for power outage
  • 2 Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
