Home  >  SZB Stereo Zoom Microscope  >  SZB Stereo Zoom Microscope on Boom Stand (7X-45X)

SZB Stereo Zoom Microscope on Boom Stand (7X-45X)
Click to enlargeSZB Stereo Zoom Microscope on Boom Stand (7X-45X)

Availability: Usually ships the same business day

SZB3413BRegular price: $999.99Sale price: $599.99
Microscope pod::
Add One WF10X/20mm Reticle Eyepiece::
Add One WF20X/10mm Reticle Eyepiece::
Add 0.5X Aux Len & WF20X Eyepiece::
Add illumination::
USB Digital Camera::

SZB Binocular Pod

If you choose SZT Trinocular Pod, this what you get. SZT Pod

If you choose to add 0.5X Aux Len & WF20X Eyepiece, this what you get. 0.5x & WF20X Eyepiece

BOOM STAND

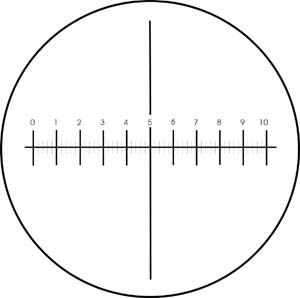

If you choose to add WF10X Or WF20X Reticle Eyepiece, this how it look like. Reticle

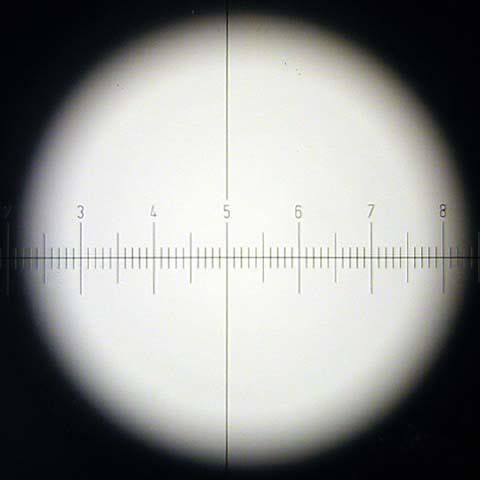

Looking through the Reticle Eyepiece Reticle 10/100mm

Specifications and Features:

·         Model: SZB3413B

  • Plug and see, no special knowledge needed
  • High quality optical glass elements
  • Sturdy boom stand provide extra working space and secure microscope head
  • Manufacturer in business 30+ years

Microscope Head:

  • 45°inclined 360° rotatable trinocular head
  • Sharp stereo erect images over a super wide field view
  • Two ocular-tube diopter adjustment & plusmn
  • Adjustabe interpupillary distance: 1-3/4" ~ 2-3/4"(47~73mm)
  • Capable to add auxiliary lenses and ring lights (sold separately)
  • Diameter of ring light or auxiliary lens mount: 48mm female thread

Magnifications and Objectives:

  • Eyepieces: high eyepoint widefield WF10X/20
  • Zoom Range:  0.7x ~ 4.5x
  • Mount thread: 48mm in diameter
  • Total magnification: 7x ~ 45x

Focusing:



  • Long working distance: 100mm (3-15/16")
  • Field of view: max 30mm (1-3/16")
  • Focusing adjustment range: 50mm (2")
  • Metal rack and pinion mechanism

Boom Stand:

  • Large and sturdy base secure microscope body
  • 360° horizontal rotatable movement
  • Body holder can be horizontally pan rotating
  • Body holder dimension: 76mm
  • Boom stand length: 22-7/8" (58cm)
  • Height of boom stand: 16-3/4" (42.5 cm)
  • Boom horizontal travel stroke: 9~1/4" (23.4cm)
  • Boom vertical travel stroke: 7~1/2" (19cm)
  • Base Dimension: 9" x 9" (23 cm x 23 cm)

Weight:

  • Total shipping weight: 42 lbs (19 kg)

Packing List:

    Binocular zoom stereo microscope head
  • A pair of WF10X/20 eyepieces
  • A pair of rubber eyeshields
  • A full set of universal boom stand with rack and pinion focus adjustment
