Home  >  SZB Stereo Zoom Microscope  >  SZB Binocular Zoom on Pole Stand with 8W Fluorescent Ring Lilght (7X-45X)

SZB Binocular Zoom on Pole Stand with 8W Fluorescent Ring Lilght (7X-45X)
Click to enlargeSZB Binocular Zoom on Pole Stand with 8W Fluorescent Ring Lilght (7X-45X)

Availability: Usually ships the same business day

SZB3140Regular price: $999.99Sale price: $549.99
Microscope::
Add One WF10X/20mm Reticle Eyepiece::
Add One WF20X/10mm Reticle Eyepiece::
Add 0.5X Aux & WF20X Eyepiece::
USB Digital Camera::
Upgrade illumination::

If you choose SZB Binocular Pod, this what you get. SZB Binocular Pod

SZB Binocular Pod

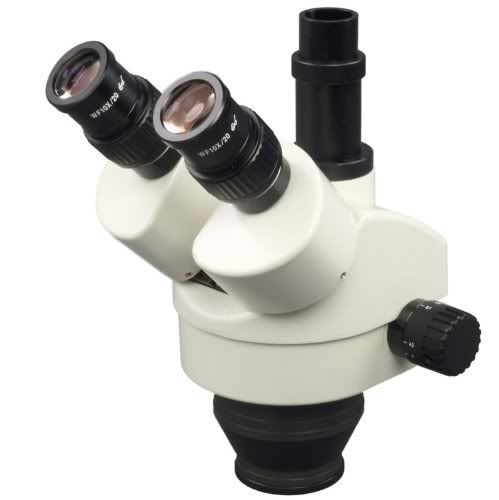

If you choose SZT Trinocular Pod, this what you get. SZT Pod

If you choose to add 0.5X Aux Len & WF20X Eyepiece, this what you get. 0.5x & WF20X Eyepiece

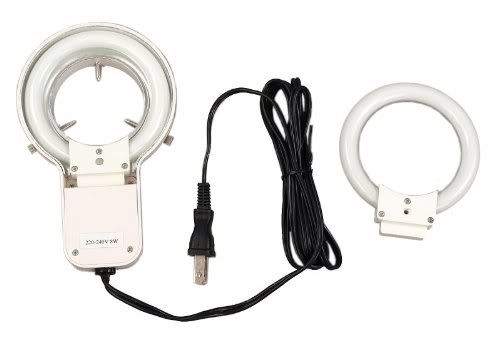

8W Fluorescent Ring Light with Spare bulb 8W Fluorescent Ring Light

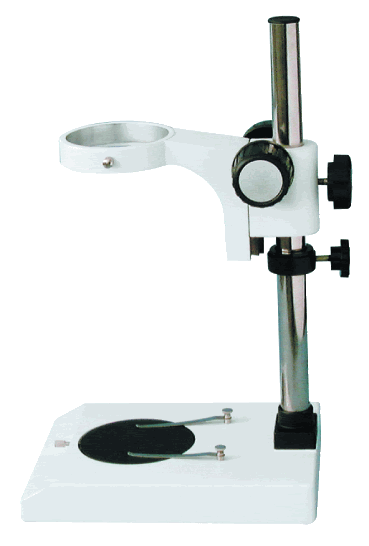

Pole Stand no Light Pole Stand

Optical Specifications Model: SZB & SZT

Auxiliary
Lens

Eyepiece

Magnification

Filed of View (mm)

Working Distance (mm)

0.7X

2X

4.5X

0.3X

 (WF10X/20)

2.1X - 13.5X

85

30

13

230 (9-1/16")

 (WF20X/10)

4.2X - 27.0X

42

15

6.5

(WF10X/22)

2.1X - 13.5X

91

32

14.5

0.5X

(WF10X/20)

3.5X - 22.5X

60

21.5

9.2

165(6-1/2")

 (WF20X/10)

7.0X - 45.0X

30

10.5

4.5

 (WF10X/22)

3.5X - 22.5X

64

23

10.2

1X

(WF10X/20)

7.0X - 45.0X

30

10.5

5

100(3-15/16")

 (WF20X/10)

14.0X - 90.0X

14.5

5.5

2.5

(WF10X/22)

7.0X - 45.0X

31.5

12

5.5

2X

 (WF10X/20)

14.0X - 90.0X

14.5

5.5

2.5

33(1-5/16")

 (WF20X/10)

28.0X - 180.0X

7.25

2.75

1.25

(WF10X/22)

14.0X - 90.0X

16

6

2.75

Specifications and Features:

· Model: SZB-3140

  • Plug and see, no special knowledge needed
  • High quality optical glass elements
  • Sturdy Pole stand provide extra working space and secure microscope head
  • 8W Fluorescent ring light with 48 mm adapter
  • Product GS and CE approved
  • Manufacturer in business 30+ years

Microscope Head:

  • 45°inclined 360° rotatable Binocular head
  • Sharp stereo erect images over a super wide field view
  • Two ocular-tube diopter adjustment & plusmn;5dp
  • Adjustabe interpupillary distance: 55~75mm
  • Capable to add auxiliary lenses and ring lights
  • Diameter of ring light or auxiliary lens mount: 48mm female thread

Magnifications and Objectives:

  • Eyepieces: high eye point wide field WF10X/20
  • Objectives: zoom 0.7x ~ 4.5x
  • Total magnification: 7x ~ 45x

Focusing:

  • Long working distance: 100mm (3-15/16") without 0.5x auxiliary lens and 150mm (5-15/16") with 0.5x auxiliary lens
  • Field of view: max 30mm (1-3/16") without 0.5x auxiliary lens and max 60mm (2-3/8") with 0.5x auxiliary lens
  • Focusing adjustment range: 50mm (2")
  • Metal rack and pinion mechanism

Pole Stand: No Light

  • Large and sturdy base secure microscope body
  • 360° horizontal rotatable movement
  • Body holder dimension: 76mm
  • Height of Pole stand: 8" with Extension Post 6”
  • Pole Base Dimension: 9" x 7"x 2”

Illumination:

  • 8W Fluorescent ring light with Spare Bulb
  • 48 mm thread adapter included

Weight:

  • Total shipping weight: 15lb

Packing List:

  • Binocular zoom stereo microscope head
  • A pair of WF10X/20 eyepieces
  • A pair of rubber eye shields
  • A full set of Pole stand with rack and pinion focus adjustment
  • 8W Fluorescent ring light with Spare Bulb
  • 48 mm thread ring light adapter
