Home  >  SZB Stereo Zoom Microscope  >  SZB Binocular Zoom on Boom Stand with 8W Fluorescent Ring Light( 7X-45X)

SZB Binocular Zoom on Boom Stand with 8W Fluorescent Ring Light( 7X-45X)
Click to enlargeSZB Binocular Zoom on Boom Stand with 8W Fluorescent Ring Light( 7X-45X)

Availability: Usually ships the same business day

SZB3412Regular price: $1,299.99Sale price: $699.99
Microscope pod::
Add Dust Cover::
Add One WF10X/20mm Reticle Eyepiece::
Add One WF20X/10mm Reticle Eyepiece::
Add 0.5X Aux & WF20X Eyepiece::
Add illumination::
USB Digital Camera::

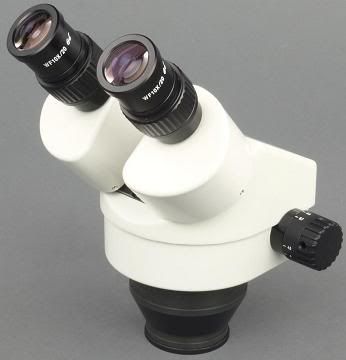

SZB Binocular Stereo Zoom Microscope Pod (.7X-4.5X) SZB Binocular Zoom Microscope

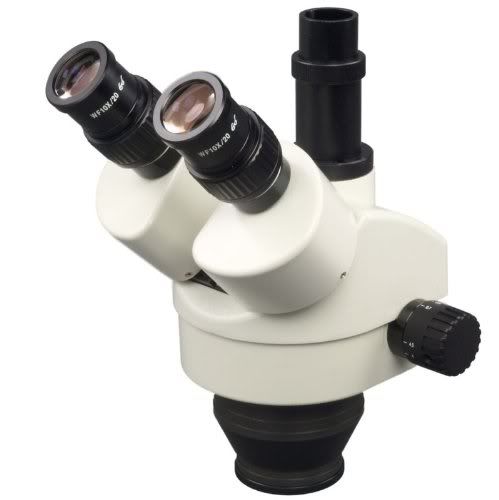

If you choose Trinocular Stereo Zoom Pod this is how it look like. SZT Trinocular Stereo Zoom Microscope Pod Photobucket

If you choose to add 0.5X Aux Len & WF20X Eyepiece, this what you get. 0.5x & WF20X Eyepiece

If you choose to add WF10X Or WF20X Reticle Eyepiece, this how it look like. 10mm/100  Reticle Cross-Hair

8W Fluorescent Ring Light (included with the Package) 8W Fluorescent Ring Light

Specifications and Features:

·         Model: SZB-3412

  • Plug and see, no special knowledge needed
  • High quality optical glass elements
  • Sturdy boom stand provide extra working space and secure microscope head
  • 8W Fluorescent ring light with 48 mm adapter
  • Product GS and CE approved
  • Manufacturer in business 30+ years

Microscope Head:

  • 45°inclined 360° rotatable Binocular head
  • Sharp stereo erect images over a super wide field view
  • Two ocular-tube diopter adjustment & plusmn;5dp
  • Adjustabe interpupillary distance: 55~75mm
  • Capable to add auxiliary lenses and ring lights
  • Diameter of ring light or auxiliary lens mount: 48mm female thread

Magnifications and Objectives:

  • Eyepieces: high eye point wide field WF10X/20
  • Objectives: zoom 0.7x ~ 4.5x
  • Total magnification: 7x ~ 45x


Focusing:



  • Long working distance: 100mm (3-15/16") without 0.5x auxiliary lens and 150mm (5-15/16") with 0.5x auxiliary lens
  • Field of view: max 30mm (1-3/16") without 0.5x auxiliary lens and max 60mm (2-3/8") with 0.5x auxiliary lens
  • Focusing adjustment range: 50mm (2")
  • Metal rack and pinion mechanism


Boom Stand:



  • Large and sturdy base secure microscope body
  • 360° horizontal rotatable movement
  • Body holder can be horizontally pan rotating
  • Body holder dimension: 76mm
  • Boom stand lenght: 21"
  • Height of boom stand: 15"
  • Base Dimension: 15" x 10"

Illumination:

  • 8W Fluorescent ring light with Spare Bulb
  • 48 mm thread adapter included

Weight:

  • Total shipping weight: 44lb

Packing List:

  • Binocular zoom stereo microscope head
  • A pair of WF10X/20 eyepieces
  • A pair of rubber eyeshields
  • A full set of universal boom stand with rack and pinion focus adjustment
  • 8W Fluorescent ring light with Spare Bulb
  • 48 mm thread ring light adapter
