Home  >  SZB Stereo Zoom Microscope  >  SZB Binocular Zoom on Articulating Arm Post on Table Clamp(3.5X-90X)

SZB Binocular Zoom on Articulating Arm Post on Table Clamp(3.5X-90X)
Click to enlargeSZB Binocular Zoom on Articulating Arm Post on Table Clamp(3.5X-90X)

Availability: Usually ships the same business day

SZBAF02PKG2Regular price: $1,699.99Sale price: $899.99
Microscope::
Add Dust Cover::
Add One WF10X/20mm Reticle Eyepiece::
Add One WF20X/10mm Reticle Eyepiece::
Upgrade illumination::
USB Digital Camera::

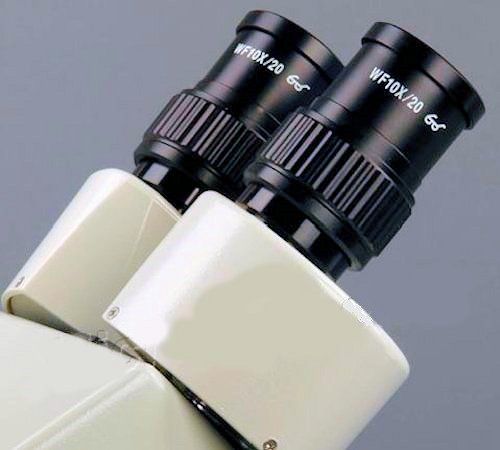

 photo 2110W-R_zps5f8bb508.jpg

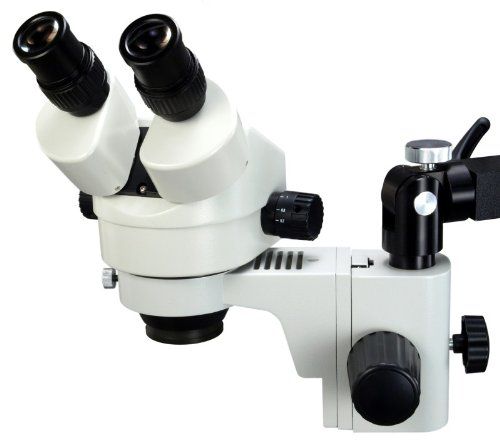

 photo szbpod001_zps73a8a66c.jpg

Photobucket

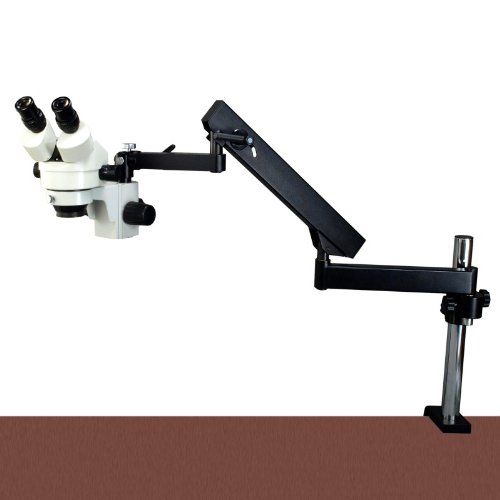

If you choose SZB Binocular Package, this what you get Photobucket

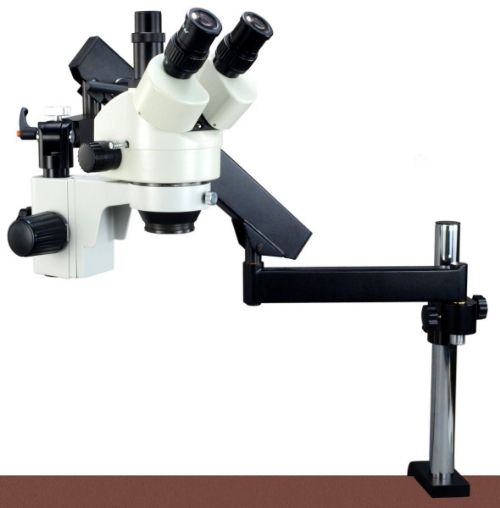

If you choose SZT Trinocular Package, this what you get  photo fb456c85-82c6-465b-90fa-0c97aac20204_zpsdb3567d4.jpg

 photo sztpod-02_zps532a093c.jpg

AF02 Articulating Arm on Post Clamp

8W Fluorescent Ring Light with Spare bulb 8W Fluorescent Ring Light

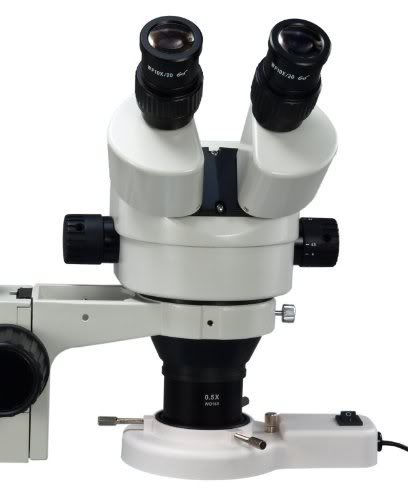

SZB with 8W Fluorescent Ring Light

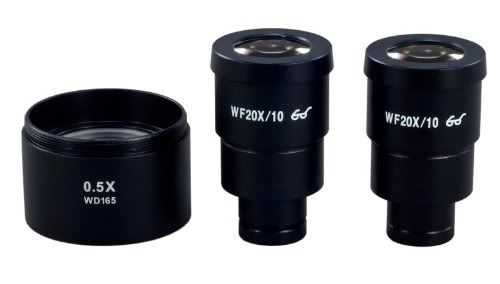

SZB WF20X & 0.5X Aux Len

If you choose to add WF10X Or WF20X Reticle Eyepiece, this how it look like. 10mm/100  Reticle Cross-Hair

If you add a Dust Cover, this how it look like:  photo c6fa386e-adf0-44d8-854b-7b07f4618809_zpsd0c6361b.jpg

Optical Specifications Model: SZB & SZT

Auxiliary
Lens

Eyepiece

Magnification

Filed of View (mm)

Working Distance (mm)

0.7X

2X

4.5X

0.3X

 (WF10X/20)

2.1X - 13.5X

85

30

13

230 (9-1/16")

 (WF20X/10)

4.2X - 27.0X

42

15

6.5

(WF10X/22)

2.1X - 13.5X

91

32

14.5

0.5X

(WF10X/20)

3.5X - 22.5X

60

21.5

9.2

165(6-1/2")

 (WF20X/10)

7.0X - 45.0X

30

10.5

4.5

 (WF10X/22)

3.5X - 22.5X

64

23

10.2

1X

(WF10X/20)

7.0X - 45.0X

30

10.5

5

100(3-15/16")

 (WF20X/10)

14.0X - 90.0X

14.5

5.5

2.5

(WF10X/22)

7.0X - 45.0X

31.5

12

5.5

2X

 (WF10X/20)

14.0X - 90.0X

14.5

5.5

2.5

33(1-5/16")

 (WF20X/10)

28.0X - 180.0X

7.25

2.75

1.25

(WF10X/22)

14.0X - 90.0X

16

6

2.75



Specifications and Features:

·         Model: SZB-AF02PKG2

  • Plug and see, no special knowledge needed
  • High quality optical glass elements
  • Sturdy Articulating Arm on Post Table Clamp stand provide extra working space and secure microscope head
  • 8W Fluorescent ring light with 48 mm thread adapter
  • Product GS and CE approved
  • Manufacturer in business 30+ years



Microscope Head:

  • 45°inclined 360° rotatable Brinocular head
  • Sharp stereo erect images over a super wide field view
  • Two ocular-tube diopter adjustment & plusmn;5dp
  • Adjustabe interpupillary distance: (55~75mm)
  • Capable to add auxiliary lenses and ring lights
  • Diameter of ring light or auxiliary lens mount: 48mm female thread



Magnifications and Objectives:

  • Eyepieces: high eye point wide field WF10X/20 and WF20X/10
  • Objectives: zoom 0.7x ~ 4.5x
  • Auxiliary objective lens: 0.5x
  • Total magnification: 3.5x ~ 90x

Focusing:

  • Long working distance: 100mm (3-15/16") without 0.5x auxiliary lens and 165mm (6-1/2") with 0.5x auxiliary lens
  • Field of view: max 30mm (1-3/16") without 0.5x auxiliary lens and max 60mm (2-3/8") with 0.5x auxiliary lens
  • Focusing adjustment range: 50mm (2")
  • Metal rack and pinion mechanism



Articulating Arm Post on Table Clamp:

  •  Model: AF02
  • Table clamp: maximum opening 2.4" (62 mm)
  • Articulating arm: spring loaded arm for easy raising and lowering, multi-arm provides more flexibility
  • 360° free revolution in horizontal direction
  • Radius of working area: maximum 41" (104 cm)
  • Diameter of microscope body holder: 3" (76 mm)
  • Focus block: rack and pinion focus adjustment 55 mm
  • Diameter of post for focus block: Φ30mm
  • Net weight: 26.35 lbs (11.95 kg)



Illumination:

  • 8W Fluorescent ring light
  • 48 mm thread adapter included



Weight:

  • Total shipping weight: 50lb



Packing List:

  • Brinocular zoom stereo microscope head
  • A pair of WF10X/20 eyepieces
  • A pair of WF20X/10 eyepieces
  • A pair of rubber eyeshields
  • 0.5x auxiliary objective lens
  • A full set of Articulating Arm Post on Table Clamp stand with rack and pinion focus adjustment (AF02)
  • 8W Fluorescent ring light
  • 48 mm thread ring light adapter
