Home  >  SZ7 Stereo Zoom Microscope  >  SZ8 TRUE Trinocular Stereo Zoom Microscope with LED Track Stand

SZ8 TRUE Trinocular Stereo Zoom Microscope with LED Track Stand
Click to enlargeSZ8 TRUE Trinocular Stereo Zoom Microscope with LED Track Stand

Availability: Usually ships the same business day

SZ8ST90LEDRegular price: $1,999.99Sale price: $949.99
Focusable Eyepieces Pair::
Add more Focusable Eyepieces Pair::
Add more Focusable Eyepieces Pair::
Add Auxiliary Lens for Working Distance:::
Add Illumination::
USB Digital Camera::

Photobucket

ST90LED-02

Features:

  • Model: SZ8ST90LED
  • True Trinocular Video Port which allows you to view your application through the eyepieces and on your Computer Simultaneously ( at same time)
  • Set and see, no special knowledge needed
  • Zoom ratio: 1:6.7
  • Diopter regulator on both eyepieces
  • High quality optical glass elements
  • Working with a boom stand, or other regular stand with 76mm mount size (sold separately)

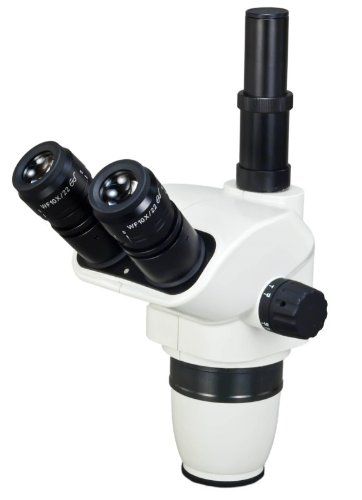

Microscope Head:

  • 45°inclined 360° rotatable trinocular head
  • Sharp stereo erect images over a super wide field view
  • Two ocular-tubes diopter adjustment & plusmn;5dp
  • Adjustable interpupillary distance: 2-1/4" ~ 2-15/16"(54~75mm)
  • Capable to add auxiliary lenses and ring lights
  • Mounting size of auxiliary lens and ring lights: 48mm female thread
  • Body mounting ring size: 76mm

Magnifications and Objectives:

  • Eyepieces: high eye point wide field WF10X/22
  • Objectives: zoom 0.67x~4.5x
  • Mount thread: 48mm in diameter
  • Total magnifications: 6.7x~45x
  • Long working distance: 4-1/4" (105mm)
  • Field of view: 1-15/16" (33mm) at 6.7x magnification, 3/16" (4.9mm) at 45x magnification

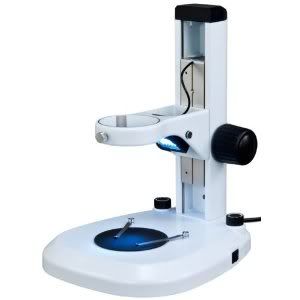

Microscope Stand:

  • Model: ST90LED
  • Matching diameter for microscope body: 76mm
  • Focus distance: 3-15/16" (100mm)
  • Incident (upper) illuminator: 30 LED matrix
  • Transmitted (lower) illuminator: 60 LED Matrix
  • Lifetime of LED: 100,000 hours
  • Each light has its own intensity control
  • Main power on/off switch
  • Tool-free focus knob tension adjustment
  • Clear glass stage plate: 100mm in diameter
  • White/black plastic stage plate: 100mm in diameter
  • Power supply: 100V-240V 50/60Hz wide range worldwide
  • Dimension: 11-1/2 " x 9-1/2" x 13-3/8" (29 cm x 24cm x 34cm)

Packing List:

  • SZ8 Trinocular zoom stereo microscope body
  • A pair of WF10X/22 eyepieces
  • Dust cover
  • LED Track Stand
