Home  >  SZ7 Stereo Zoom Microscope  >  SZ7 Stereo Zoom Microscope on Big Base Pole Stand

SZ7 Stereo Zoom Microscope on Big Base Pole Stand
Click to enlargeSZ7 Stereo Zoom Microscope on Big Base Pole Stand

Availability: Usually ships the same business day

SZ7-PSRegular price: $1,299.99Sale price: $749.99
Microscope Pod::
Focusable Eyepieces Pair::
Add more Focusable Eyepieces Pair::
Add more Focusable Eyepieces Pair::
Add Auxiliary Lens for Working Distance:::
Add Illumination::
USB Digital Camera::

SZ7POD

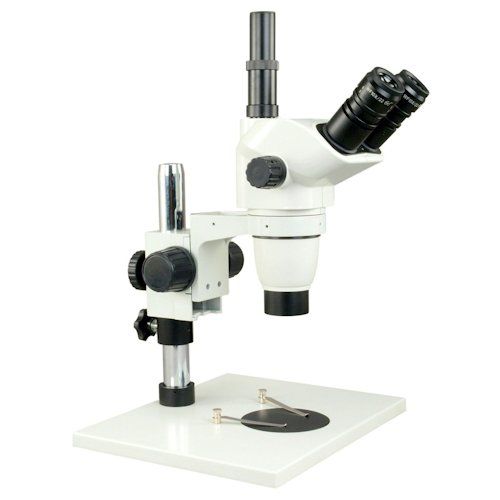

If you choose to purchase SZ8 TRUE Trinocular Pod, this is how it look like: Photobucket

 photo SZ8-PS_zps8089d23e.jpg

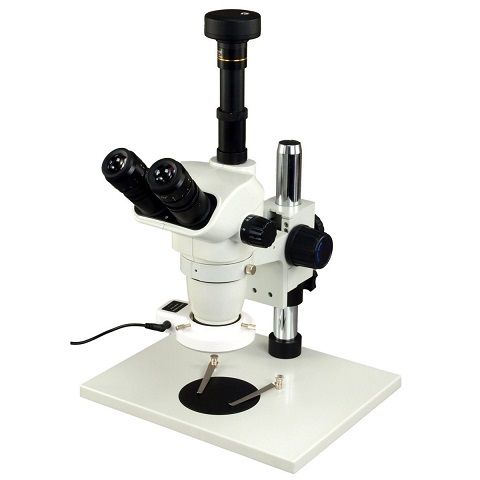

If you choose to purchase SZ8 TRUE Trinocular Pod with LED Ring Light and USB Digital Camera. This how it would look like.  photo SZ8-PS_zps23c4a992.jpg

Features:

  • High quality optical glass elements
  • 10X high eyepoint widefield eyepieces
  • Zoom magnification from 6.7X to 45X
  • Sturdy table stand with large base and 2 stage clips
  • Rack & pinion focus adjustment

Specifications:

  • Model: SZ7PS
  • Total magnification: 6.7X - 45X
  • Microscope body
    - Binocular, 360 rotatable viewing head
    - 45 inclined ocular tubes
    - Interpupillary distance adjustable: 54 ~ 75mm (2-1/8"~ 3")
    - Inner diameter of ocular tube: 30mm (1-3/16")
    - Mounting size for auxiliary lens: 48mm female thread
  • Eyepiece
    - A pair of high eyepoint widefield WF10X/22
    - Diopter adjustable
  • Objective
    - Zoom 0.67X ~ 4.5X
    - Zoom ratio 6.7:1
  • Working distance
    - 105mm (4-1/8")
  • Field of view
    - Max. 33mm (1-19/64")
  • Table stand
    - Focus adjustment: rack and pinion, range 48mm ( 1-7/8" ), tool-free tension adjustment
    - Body holder: 76mm ( 3" )in diameter, microscope body 360 rotatable
    - Post: metal, diameter 32mm ( 1-1/4" ), height 290mm ( 11-1/2")
    - Base: metal, 320mm x 260mm x 20mm (12-5/8" x 10-1/4" x 3/4"), with 2 stage clips and a 100mm ( 4" ) black/white plastic stage plate
  • Net weight
    - 5.0 kg ( 11 lb 1 oz)

Packing List:

  • Binocular stereo microscope body
  • A pair of WF10X/22 eyepieces
  • Dust cover
  • A full set of table stand
