Home  >  SZ Stereo Zoom Microscopes  >  SZM10 Stereo Zoom Microscope with LED Light Coarse & Fine Track Stand(8X-80X)

SZM10 Stereo Zoom Microscope with LED Light Coarse & Fine Track Stand(8X-80X)
Click to enlargeSZM10 Stereo Zoom Microscope with LED Light Coarse & Fine Track Stand(8X-80X)

Availability: Usually ships the same business day

SZM10Regular price: $3,999.99Sale price: $3,499.99
USB Digital Camera::

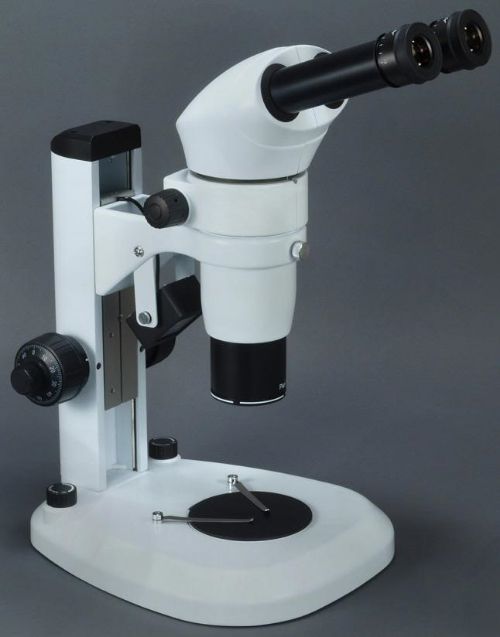

 photo 0507c0a8-9e2f-4622-ad4c-8b6a8cef7e65_zps70c48358.jpg

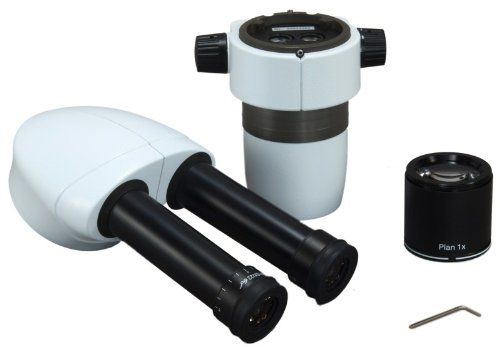

 photo 54a0aa42-b066-4970-bc09-3e1c98a1ea6f_zpsc08fc01c.jpg

Features

1. Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.

2. Comfortable Operation with Ergonomic Design Principle.

3. With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.

4. A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Application area

This stereo zoom microscope with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Features & Specifications:

Model

SZM10

Magnification

Zoom 8X - 80X, Zoom ratio 1:10

Viewing Head

20 inclined, 360° swiveling binocular head;
Interpupillary distance: 50mm-75mm (2" - 3")

Eyepiece

A pair of 10X high eye point eyepiece EW10X/22
Wide field 22mm
Dioptor adjustable on both eyepiece 5dp

Zoom Body

0.8X-8X, Zoom ratio 1:10

Objective

Common main objective
1X Plan achromatic objective

Focus Mechanism

Sturdy metal framework
Fine & Coarse focus knobs on both side
tension adjustable, focus range: 105 mm

Stage Plate

Clear glass stage plate, Φ100 mm
White/Black plastic stage plate, Φ100 mm

Working Distance

78 mm

Field of View

Φ26 mm with 0.8X10 magnification
Φ2.5 mm with 8X10 magnification

Depth of field

Up to 17 mm

Illumination

Dual LED illuminators, 6000 hours life
Upper: 5X6 matrix LED light, intensity adjustable, variable inclination
Bottom: LED light, intensity adjustable

Power Supply

100 - 240V AC, 50/60 Hz, main power switch, US and Canada Plug

Dimension

37 cm x 24 cm x 50 cm (14-3/8" x 9-1/2" x 19-1/2")

Shipping Weight

42 lbs

Packing List:

  • Binocular viewing head
  • Microscope body
  • Common Main Objective
  • Microscope stand
  • A pair of EW10X/22 eyepieces
  • Clear glass stage plate
  • Black/white high quality plastic stage plate
  • Power cord
  • Dust cover
  • 2 Extra fuse
  • 2 Allen key
