Home  >  SZ2 Stereo Zoom Microscope  >  SZ2 Stereo Zoom Microscope on Track Stand LED Light 10X-45X

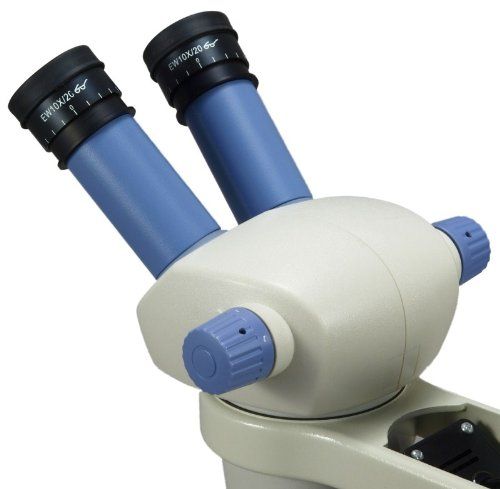

SZ2 Stereo Zoom Microscope on Track Stand LED Light 10X-45X
SZ2 Stereo Zoom Microscope on Track Stand LED Light 10X-45X

Availability: Usually ships the same business day

SZ2Regular price: $799.99Sale price: $499.99
USB Digital Camera::
Add more illumination::

SZ2 Stereo Zoom Microscope

SZ2 Stereo Zoom Microscope

Using with USB Digital Camera throught eyepiece Tube SM2Pack

The binocular stereo microscope SZ2 is designed for professionals in academic, medical and industrial area. This microscope features long working distance, widefield eyepieces with diopter adjustment on both eyepieces. Matrix LED upper and bottom lights provide brigth and even light. This microscope is made by manufacturer in business over 30 years.

Features & Specifications

Model

SZ2

Total magnification

Zoom 10X to 45X

Working Distance

100 mm

Field of view

18.5 mm at 10X magnification
4.2 mm at 45X magnification

Eyepieces

A pair of Widefield EW10X/20
Secured by a "C" ring inside the eyepiece tube
Diopter adjustment on each eyepiece

Objectives

Zoom 1X to 4.5X
Auxiliary objective thread: 50mm in diameter

Viewing Head

Binocular, 45 Inclined, 360 rotatable
Interpupillary distance: 50 mm - 75 mm

Stage

Clear glass stage plate 50 mm in diameter

Focusing

Adjustment knobs on each side
Range: 54 mm - 154 mm
Tool-free tension adjustment

Illumination

Incident (Upper light): 12 LED with own switch/intensity knob
Transmitted (bottom light): 7 LED with own switch/intensity knob

Power Supply

100V - 240V, 50/60Hz, 0.5A

Dimension

12-3/8" x 7-1/4" x 15-3/8" (31.5cm x 18.5cm x 39cm)

Net weight

10 lb 5 oz (4.7 kg)

Description

High quality, high function and excellent cost performance.
Best choose with ergonomic design, sharp image display and wide viewing field.
Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
Ideal instrument in academic, medical and industrial field.

Description:

High resolution, Wide viewing field, Long working distance

Diopter adjustable


Zoom objective 0.7-3/ 1-4.5, Zoom ratio 1:4.3/ 1:4.5



Binocular head inclined at 45, interpupillary 52-75mm
