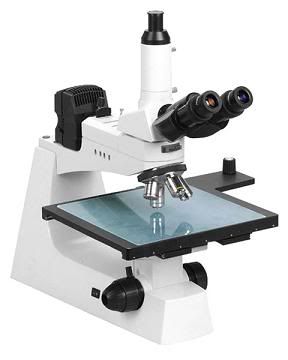

Semiconductor Inspection Microscope for PCB and Wafer
Click to enlargeSemiconductor Inspection Microscope for PCB and Wafer

Availability: Usually ships the same business day

SIMT-836LRegular price: $4,000.00Sale price: $2,999.99
USB Digital Camera::

SIMT836L

Semiconductor Inspection Microscope

Semiconductor Inspection Microscope

Semiconductor Inspection Microscope

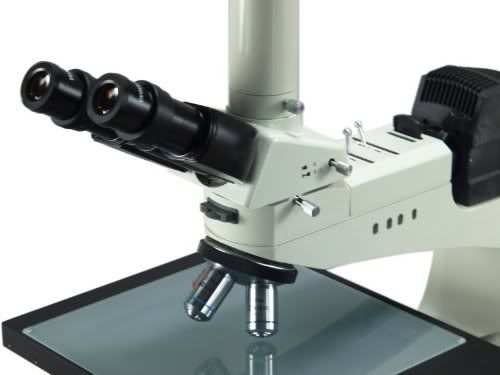

This microscope is designed for large area inspection. It has a reflected lighting system which is different from regular low power stereo microscopes. It also has large working distance objectives (3.7mm for 40x objective) which is absence in regular high power compound microscopes. The PLAN achromatic objectives assure high image quality from center to edge. The stage has large translational range (10"x10") with coarse and fine coaxial knobs and a unique hand-push fast movement mechanism. It also can work as a polarizing microscope with the included polarizer/analyzer inserts.

Warranty: 5 (five) years
Retail value:
$8000

Features:

  • Sturdy base ensures still image at high powers
  • Large stage and large movement range
  • Comfortable lower-front coarse and fine focus knobs
  • Hand-push fast movement mechanism
  • Standard C-mount and 23.2mm eye tube included for digital photography
  • Infinitive long working distance PLAN objectives
  • Extra widefield eyepieces (EW10X/22)
  • Wide range interpupillary distance (48mm-75mm)
  • Color and diffusion filters included
  • Polarizing elements included
  • Color and diffusion filters included
  • Manufacturer in business 30+ years

Specifications:

  • Model: SIMT-836L
  • Head: 30°Inclined 360°rotatable Seidentopf trinocular
  • Nosepiece: quadruple
  • Eyepieces: extra wide field EW10X/22
  • Interpupillary distance: 48mm-75mm
  • Objective: plan field achromatic DIN 4x, 10x, 20x, 40x(S), 80x(S)
  • Objective working distances: 4x-25.4mm, 10x-11mm, 20x-6mm, 40x-3.7mm, 80x-0.2mm
  • Objective field of view: 4x-6mm, 10x-2mm, 20x-1.06mm, 40x-0.53mm, 80x-0.35mm
  • Total magnification: 40x-100x-200x-400x-800x
  • Reflected illuminator: 6V/20W halogen
  • Large stage 11-3/4" x 10-1/2"(300mm x 268mm)
  • Large stage moving range: 10" x 10" (254mm x 254mm)
  • Stage vertical stroke (focusing travel distance): 1" (25mm)
  • Power supply: 110V/60Hz (US and Canada plug)
  • Polarizing Elements: 1 polarizer, 1 90-degree adjustable analyzer
  • Dimension: 22" x 15-1/2" x 22" (56cm x 40cm x 56cm)
  • Net weight: 35lb 6oz (16kg)
  • Shipping package weight: 79lb (36kg)

Packing List:

  • Trinocular inspection microscope body
  • 5 plan field achromatic objectives: 4x, 10x, 20x, 40x(spring), 80x(spring)
  • Eyepiece: a pair of EW10X/22
  • C-mount adapter
  • 23.2mm vertical phototube adapter
  • Power cord (US and Canada standard)
  • Dust cover
  • A pair of polarizer/analyzer elements
  • 3 color filters, yellow, green, blue
  • 1 diffusion filter
  • Extra halogen bulb (6V/20W)
  • Extra fuses

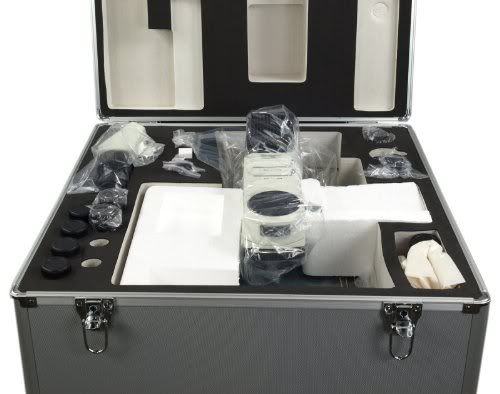

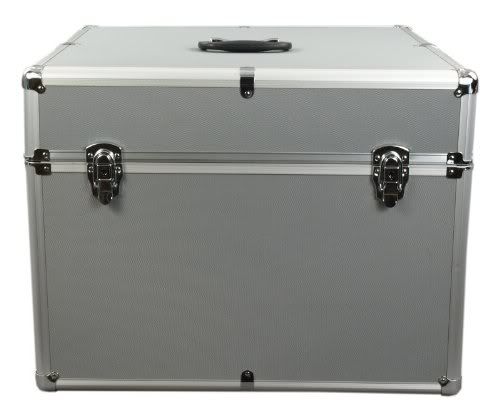

  • Aluminum case
