Home  >  Compound / Metallurgical / Inverted & More  >  Research Biological Microscope 30 Degree Head 40X-1600X

Research Biological Microscope 30 Degree Head 40X-1600X
Click to enlargeResearch Biological Microscope 30 Degree Head 40X-1600X

Availability: Usually ships the same business day

MB30Regular price: $999.99Sale price: $399.99
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminum Carry Case::
Add Vinyl Carrying case::

Photobucket

Photobucket

If you choose to add 100 PCS Slides & Cover Slips, this how it look like.

100 pcs slides

100 pcs cover slides

Features:

    Perfect for labs, clinics, universities, and high schools
  • High quality professional optical glass elements
  • 30°inclined 360°swiveling Siedentopf binocular head
  • Easy to mount CCD camera (electronic eyepiece)
  • 8 levels of magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x

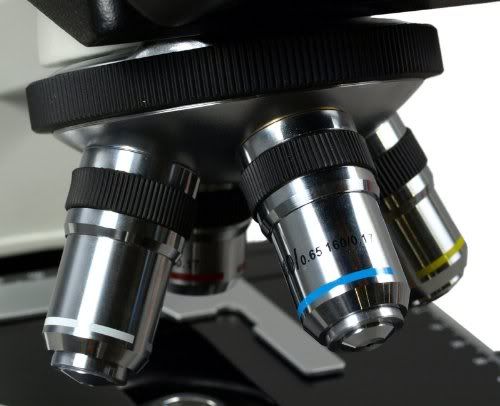

  • 4 achromatic objectives DIN 4x, 10x, 40x(S), 100x(S,Oil)
  • 2 pairs of eyepieces: WF10X and P16X
  • Hinged head with interpupillary distance adjustment
  • Ocular diopter adjustable on left eyetube
  • Variable intensity illumination
  • High resolution images over a wide field view
  • Metal framework
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Manufacturer in business 30+ years



Specifications:

  • Model: MB30
  • Head: 30°Inclined 360°swiveling Siedentopf binocular
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X and P16X
  • Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • Total magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x
  • Transmitted (lower) illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 110V 60Hz US and Canada Standard
  • Dimension: 12" x7-1/2" x 15-1/2" (30.5cm x 19cm x 39cm)
  • Net weight: 13 lb 4 oz (6kg)
  • Package weight 20 lb



Packing List:

  • Binocular microscope with 4 DIN objectives
  • Eyepieces: a pair of WF10X and a pair of P16X
  • A bottle of Immersion oil
  • Power cord (US and Canada standard)
  • Mirror for power outage
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
