Home  >  Compound / Metallurgical / Inverted & More  >  Professional Trinocular Compound Microscope (40x-1600x)

Professional Trinocular Compound Microscope (40x-1600x)
Click to enlargeProfessional Trinocular Compound Microscope (40x-1600x)

Availability: Usually ships the same business day

CPT1600Regular price: $799.99Sale price: $439.99
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminum Carry Case::
Add Vinyl Carrying case::

Photobucket

Photobucket

Photobucket

If you choose to add 100 PCS Slides & Cover Slips, this how it look like. 100 pcs slides

100 pcs cover slides

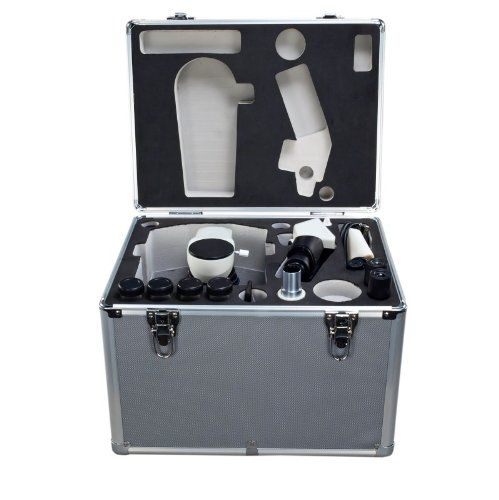

If choose to purchase Aluminnum Carrying Case, this how it look like: Aluminnum Case





Specifications

Eyepieces

Designation

Magnification

Field of View

Focal Length

Wide Field

10X

18mm

24.94mm

Plan Field

16X

11mm

15.58mm

Objectives

Magnification

NA

slide cover Thickness

Focus

Working Distance

Working Mode

4X

0.10

0.17mm

31.04mm

37.5mm

Dry

10X

0.25

0.17mm

17.13mm

7.316mm

Dry

40X(S)

0.65

0.17mm

4.65mm

0.632mm

Dry

100X(S, Oil)

1.25

0.17mm

2.906mm

0.198mm

Oil

Magnifications

Eyepiece

10X

16X

10X

16X

10X

16X

10X

16X

Objective

4X

10X

40X

100X

Magnification

40X

64X

100X

160X

400X

640X

1000X

1600X





Features:

  • Perfect for labs, clinics, universities, and high schools
  • High quality professional optical glass elements

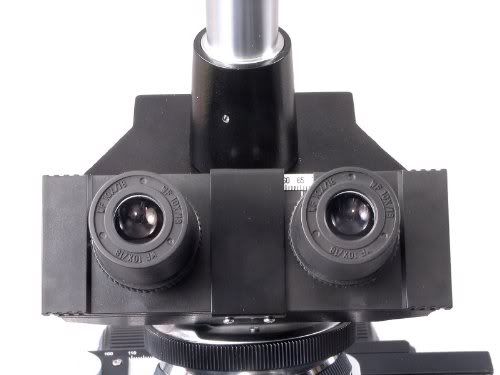

  • 45°inclined 360°swiveling trinocular head
  • Easy to mount CCD camera (electronic eyepiece)
  • Height adjustable photo tube
  • 8 levels of magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x

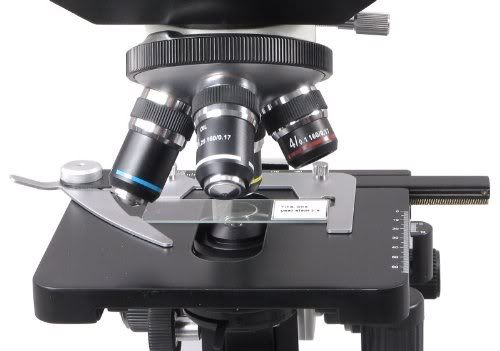

  • 4 achromatic objectives DIN 4x, 10x, 40x(S), 100x(S,Oil)
  • 2 pairs of eyepieces: WF10X and P16X
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Variable intensity illumination
  • High resolution images over a wide field view
  • Metal mechanical components

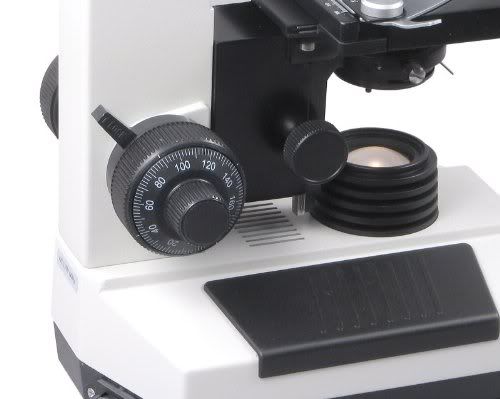

  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Manufacturer in business 30+ years



Specifications:

  • Model: CPT1600
  • Head: 45°Inclined 360°swiveling trinocular
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X and P16X
  • Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • Total magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x
  • Transmitted (lower) illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Photo tube adjustment range: 3/4" (18mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 100V~240V 50/60Hz worldwide range (US and Canada plug)
  • Dimension: 11" x7-1/2" x 17" (28cm x 19cm x 43cm)
  • Net weight: 11 lb (5kg)
  • Package weight: 13.8 lb (6.3 kg)






Packing List:



  • Trinocular microscope with 4 DIN objectives
  • Eyepieces: a pair of WF10X and a pair of P16X
  • A bottle of Immersion oil
  • Power cord (US and Canada standard)
  • Mirror for power outage
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses




Brighter Darkfield Condenser NA1.36-1.25+100X Plan ObjectiveBrighter Darkfield Condenser NA1.36-1.25+100X Plan Objective
without the darkfield kit

with darkfield kit

darkfield kit

The darkfield microscopy is a technique to observe unstained transparent specimens in a dark viewing field background, but suffers low light intensity, ie. the dark viewing field is too dark, even with the brightest illumination.

The problem is resovled by our newly designed darkfield condenser, which provides much brighter viewing field then the ordinary one. Two images taken from the two darkfield condensers are put here for comparison.

Specifications:

  • Model: DarkfieldKit01
  • Darkfield condenser: NA 1.36-1.25
  • Condenser mounting size: 37mm in diameter
  • Darkfield objective: Plan 100X/1.25-0.5 160/0.17, w/ built-in iris diaphragm, oil, spring loaded



Packing List:

  • One darkfield condenser
  • One plan 100X darkfield objective lens



Other Darkfield condenser available:

  • Dry darkfield kit
  • Oil darkfield kit





Brighter Darkfield Condenser NA1.36-1.25+100X Plan Objective

Availability: Usually ships the same business day

DarkfieldKit01Regular price: $599.99Sale price: $399.99
