Home  >  Darkfield Stage & Jewelry Microscopes  >  Professional Microscope with Jewelry Stand (12X-75X)

Professional Microscope with Jewelry Stand (12X-75X)
Click to enlargeProfessional Microscope with Jewelry Stand (12X-75X)

Availability: Usually ships the same business day

SMZ1GEMRegular price: $2,499.99Sale price: $1,999.99
USB Digital Camera::

Gem Scope

GemScope

GemScope

Features:

  • Model: SMZ1GEM
  • For distinguishing genuine & imitation gems and judging production origin
  • Ergonomic design; more comfortable to handle
  • Offers crisp sharp, high resolution images with bright or dark field illumination
  • Zoom ratio 1:6.3
  • 15x widefield eyepieces with diopter regulator
  • Adjustable interpupillary distance to fit anyone's eyes
  • Transmitted halogen illumination
  • Adjustable gooseneck rectangular fluorescent lamp
  • Flexible LED point light brings light to any angle
  • Large working distance of 115mm gives user more operating room
  • Metal framework
  • Product CE approved

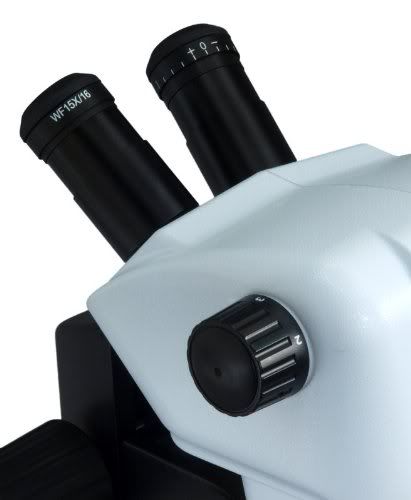

Microscope Head:

  • 45 degrees inclined 360 degrees rotatable binocular head
  • Sliding interpupillary distance adjustment: 50-70mm

Magnifications:

  • Wide field 15X eyepieces with ;&Phi16mm field of view
  • Objective zoom: 0.8X~5X ratio 1:6.3
  • Total magnification: 12X~75X (expandable magnification with 20X eyepieces)

Illumination:

  • 7W gooseneck fluorescent lamp
  • Flexible LED point light
  • 6V/20W halogen transmitted illumination

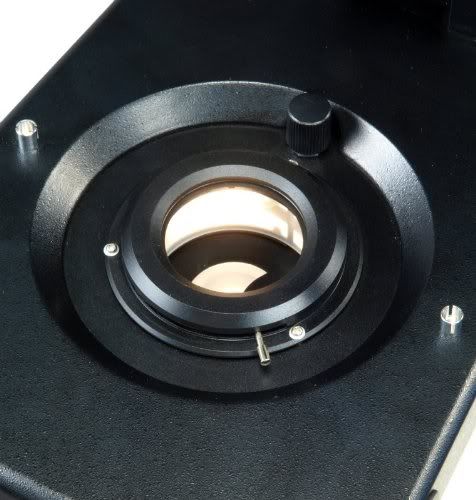

         Iris diaphragm: 2mm~41mm

         Bright and darkfield illumination

  • Adjustable dark field disk
  • Power supply: 100V~240V 50/60Hz worldwide range (US and Canada power plug)

Focusing:

  • Focus range : 110mm; suitable for observing different sized gems and samples
  • Focusing knobs on both sides
  • Tool-free focus knob tension adjustment

Working Distance & Field of view

  • Working distance: 115mm
  • Field of view: 3.5mm (using 5x objective and 15x eyepiece), 19.5mm (using 0.8x objective and 15x eyepiece)

Stage:

  • Gemology stage with clamp fixing holds on either side to choose from
  • Quality steel wire clamps

Stand:

  • 0 - 325 degrees rotatable base
  • Inclinable up to 38 degrees for better comfort and view

Framework:

    Metal framework

Dimension and Weight:

  • Dimension: 28cm x 28cm x 49cm (11x11x19-1/4 inch)
  • Net weight: 8.66kg (19lb 1.5 oz)

Packing List:

  • Binocular stereo zoom microscope body
  • Gemology microscope stand
  • Pair of wide field 15X eyepieces
  • Steel wire clamps (tweezers)
  • LED point light
  • 7W gooseneck fluorescent lamp
  • Extra fuses
  • Allen key
