Home  >  Compound / Metallurgical / Inverted & More  >  Portable LED Biological Binocular Microscope 40x~1600x

Portable LED Biological Binocular Microscope 40x~1600x
Click to enlargePortable LED Biological Binocular Microscope 40x~1600x

Availability: Usually ships the same business day

PCP-LED1600Regular price: $699.99Sale price: $399.99
Microscope pod::
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminnum Carry Case::
Add Vinly Carrying case::

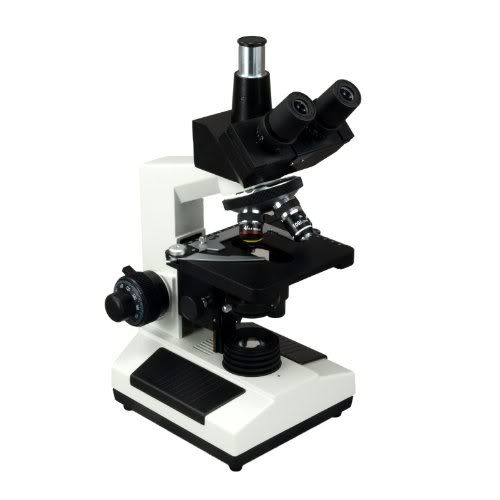

If you choose to buy Trinocular Compound Microscope, this how it look like. Trinocular Compound LED

If you choose to purchase Aluminnum Carry Case, this how it look like: Aluminnum Case

Features:

  • Model: PCP-LED
  • This is new compound microscope model that has bright low power LED lighting which can run on batteries or AC adapter. It has all the features that our previous models have. The advantages of the LED lighting are:
    • Portable - running on batteries for more than 30 hour continuous work
    • Low heat - safe for children touching on the light housing
    • Energy saving - 1/20 of ordinary microscope power consumption
    • Bright - it's brighter than a 20w halogen bulb
    • No bulb change needed
  • Solid metal framework

Microscope Head:

  • 45°inclined 360°swiveling, sliding binocular head
  • Nosepiece: revolving quadruple
  • Easy to mount CCD camera (electronic eyepiece)
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes


Magnifications and Objectives:



  • 2 pairs of eyepieces: WF10X and P16X
  • 4 achromatic objectives: DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • 8 levels of magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x

Illumination:

  • Bright and cool LED illumination system operated on 3 AA rechargeable batteries or AC/DC power adapter
  • AC/DC power adapter: input 100-240VAC 50/60Hz; output DC 7.5V/1000ma
  • Power on and off switch
  • Variable intensity dial for better lighting adjustment

Focusing:

  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Focusing knob can be locked for protecting the objectives and slides from being broken

Condenser:

  • NA1.25 Abbe Condenser with iris diaphragm & frosted filter to provide softness light (do not look into the eyepieces without the filter on since it could be too bright)
  • Rack and pinion adjustable condenser provides better image illumination for different power objectives


Stages:



  • Large stain-resistant double layer mechanical stage
  • Stage upward moving lock protects objectives and slides
  • Size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • X-Y stroke (travel range): 3" x 2" (75mm x 50mm)

Size and Weight:

  • Dimensions: 14-3/8" 11-5/8" x 18-3/4" (36.5 cm x 29.5 cm x 47.5 cm)
  • Net weight: 10 lb (4.6 kg)
  • Package weight 19 lb (8.5 kg)

Packing List:

  • Binocular microscope head
  • A pair of WF10X/18 and a pair of P16X eyepieces
  • 4 DIN achromatic objectives: 4x, 10x, 40x(S) and 100x(S,Oil)
  • 3 AA rechargeable batteries
  • AC/DC power adapter
  • A bottle of Immersion oil
  • Dust cover
