Home  >   Video Inspection Microscope  >  LCD Microscope Inspection with Reticle Measurement w/ LED 96 Ring Light

LCD Microscope Inspection with Reticle Measurement w/ LED 96 Ring Light
Click to enlargeLCD Microscope Inspection with Reticle Measurement w/ LED 96 Ring Light

Availability: Usually ships the same business day

LCDmicroscopeRegular price: $2,499.00Sale price: $1,899.99

Photobucket

Photobucket

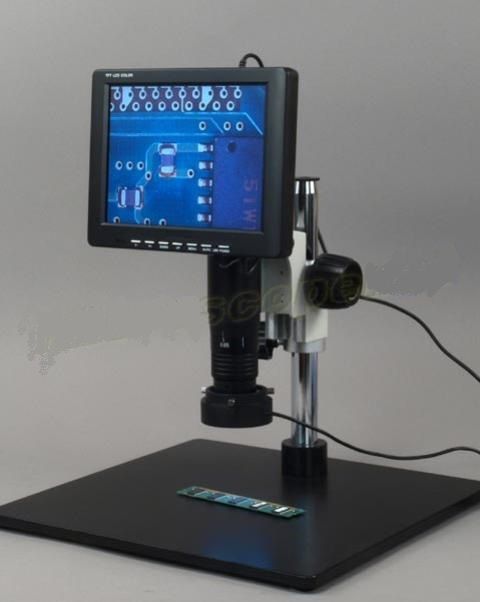

LCD Zoom Microscope

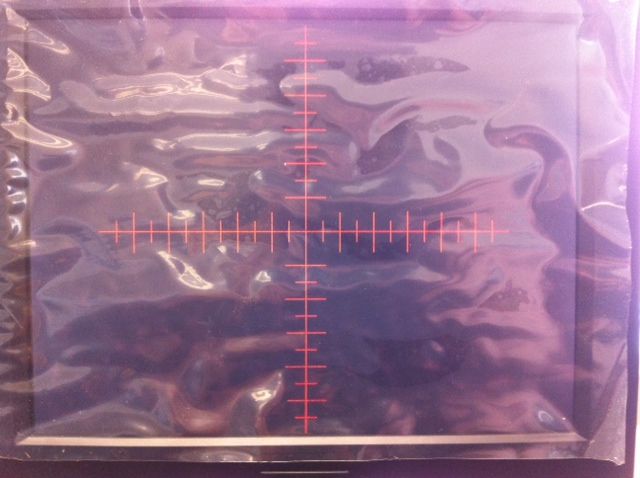

Built with Reticle, here how it look like: LCD Microscope with Reticle

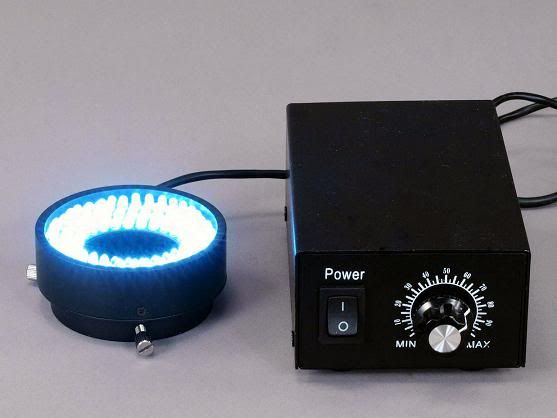

LED 96 Ring Light

Specifications:

  • Model: LCDMICROSCOPE
  • Plug and see, no special knowledge needed
  • Total magnification: 11X ~ 102X

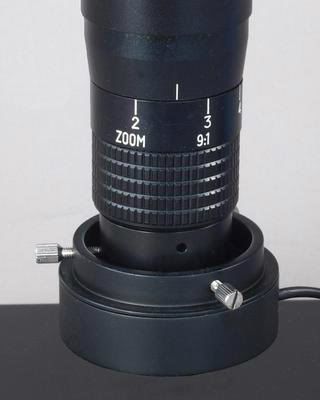

  • Zoom Objectives: 0.65X ~ 6X, ratio 1:9
  • CCD Camera: 1/3" CCD, 580 line, with built in 0.45X reduction lens
  • LCD monitor: 8", with reticle, adjustable brightness and contrast, PC/AV input
  • Field of view: 14 mm ~ 1.5 mm
  • Working distance: 100 mm ( 4" )
  • Focusing: rack & pinion adjustment, stroke 60 mm
  • Illumination: 96-LED ring light, with 100V - 240V AC power adapter, intensity adjustable
  • Stand: height adjustable, with large base
  • Dimensions: base 35cm x 35cm (13-3/4" x 13-3/4"), height 31.5cm (12-3/8") only stand, height 44cm (17-1/4") with microscope
  • Net weight: 13.55 kg (29lb 14oz), of microscope + stand + monitor + ring light + power adapters

Packing List:

  • Monocular inspection microscope body
  • Metal stand
  • LCD monitor
  • AC adaptor for microscope
  • Ring light and it's AC adaptor
  • Dust cover
