Home  >  Compound / Metallurgical / Inverted & More  >  Trinocular Polarizing Metallurgical Microscope 40X-2000X

Trinocular Polarizing Metallurgical Microscope 40X-2000X
Click to enlargeTrinocular Polarizing Metallurgical Microscope 40X-2000X

Availability: Usually ships the same business day

MT83Regular price: $3,999.99Sale price: $1,800.00
USB Digital Camera::

Metallurgical Trinocular Microscope

Photobucket

Photobucket

Metallurgical microscope is widely used for metallurgical, mineral identification and crystal, electronic integrated circuit examination and research. This product features attachable polarizing plates and infinity-corrected plan field achromatic objectives. The 100X objective is dry (immersion oil free) to meet the special need during the examination. The long working distance of the 40X (2.8mm) and 100X (0.7mm) objectives makes it possible to inspect the rough surface.

Warranty: 5 years
Retail value: $6000

Features:

  • High quality professional optical glass elements
  • 30°inclined 360°rotatable trinocular Siedentopf head

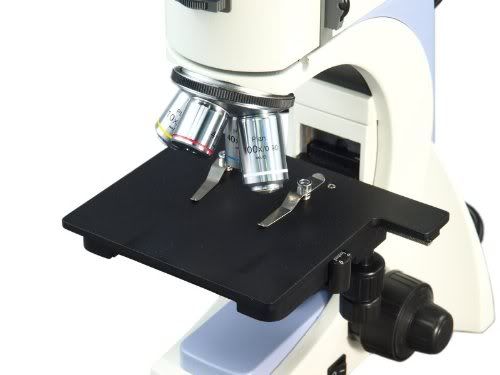

  • Triple layer mechanical stage
  • Reflected polarizing illumination system
  • 4 infinity-corrected plan field achromatic objectives
  • Dry 100X objective included
  • 2 pairs of eyepieces: WF10X and WF20X
  • Extremely high resolution sharp images over a wide field view
  • All metal mechanical components
  • Manufacturer in business 30+ years

Specifications:

  • Model: MT83
  • Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x
  • Eyepieces: wide field WF10X/20 and WF20X
  • Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm)
  • Head: 30°Inclined 360°rotatable trinocular Siedentopf head
  • Nosepiece: revolving quadruple
  • Illumination system: 6V/30W halogen bulb, position adjustable, intensity adjustable, with built-in condenser, iris aperture diaphragm, iris field diaphragm, 2 color filter slots and polarizer/analyzer slots
  • Condenser: built-in, spiral adjustment
  • Stage: triple layer mechanical stage with clips, size: 15cm - 14cm, translation range 50mm x 75mm
  • Focus mechanism: Coaxial coarse & fine knobs on both sides with adjustable tension control and stop lever
  • Power supply: 110V 50Hz/60Hz (US and Canada)
  • Dimension: 18-7/8" x 7-5/8" x 20-5/8" (48cm x 19.5cm x 52.5cm)
  • Net weight: 19lb 3oz (8.7kg)

Packing List:

  • Microscope viewing head
  • Microscope stand
  • 4 objectives: 4x, 10x, 40x, 100x
  • 2 pairs of eyepieces: WF10X/18, WF20X
  • EPI light assembly
  • A set of polarizer and analyzer
  • 3 color filters: green, blue and yellow
  • Photo tube
  • Allen key
  • Focus tension adjustment wrench
  • Power cord (US and Canada standard)
  • Extra halogen bulbs: 6V/30W
  • Extra fuses
  • Dust cover
