Home  >   Video Inspection Microscope  >  Inspection Microscope+8" LCD Monitor+96LED Ring Light

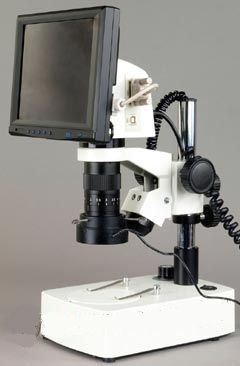

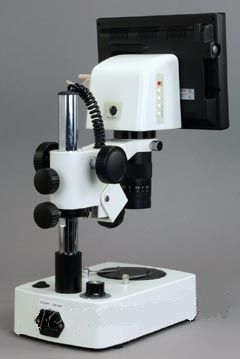

Inspection Microscope+8" LCD Monitor+96LED Ring Light
Click to enlargeInspection Microscope+8" LCD Monitor+96LED Ring Light

Availability: Usually ships the same business day

VD400Regular price: $2,499.99Sale price: $1,899.99

Photobucket

Photobucket

Specifications:

  • Model: DM400
  • Total magnification: 8.3X - 53X
  • Zoom Objectives: 0.7X - 4.5X, ratio 6.4:1
  • Camera: 1/2" CMOS, 1.3M pixel resolution, VGA/USB output port, capable of showing crossline, comparing and freezing images
  • Monitor: 8" TFT-LCD screen, adjustable brightness and contrast
  • Field of view: 19.5mm - 3 mm
  • Working distance: 90 mm ( 3-17/32" )
  • Focusing: rack & pinion adjustment, stroke 60 mm
  • Illumination:
    - Incident: 12V 10W halogen intensity adjustable;
    - Transmitted light: 5W 6400K fluorescent U-tube light;
    - Ring light: 96 LED, intensity adjustable, metal shell
  • Power supply
    - Microscope: 120V AC
    - Camera: 100-240V AC
    - Ring light: 90-265V AC
  • Dimensions: 25cm x 22cm x 42cm (9-7/8" x 8-5/8" x 16-1/2")
  • Net weight: 5.9 kg (12lb 16oz)

Packing List:

  • microscope body (including objective, camera and monitor)
  • AC adapter for camera
  • VGA cable
  • Stand
  • Glass stage plate
  • Black/White plastic stage plate (installed)
  • Extra fluorescent light tube
  • Extra halogen light bulb
  • Extra fuse
  • Dust cover
  • Lens cleaning paper
  • 96 LED ring light
  • Power adapter for ring light
  • Power cord for ring light
