Home  >  Compound / Metallurgical / Inverted & More  >  Digital Compound Microscope Built in 3.0MP USB Camera(40X-2000X)

Digital Compound Microscope Built in 3.0MP USB Camera(40X-2000X)
Click to enlargeDigital Compound Microscope Built in 3.0MP USB Camera(40X-2000X)

Availability: Usually ships the same business day

CPUSB3XRegular price: $799.99Sale price: $499.99
Add 100 PCS Slides & Cover Slips::
Add Aluminnum Carry Case::
Add Vinly Carrying case::

Digital Compound with 3.0MP

Digital Compound with 3.0MP

Digital Compound Microscope

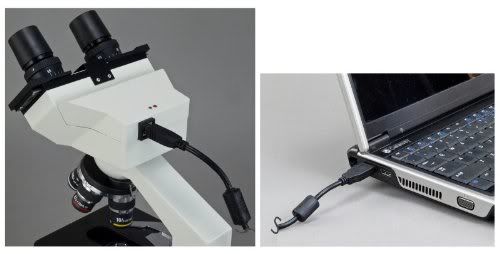

USB 3.0X Camera

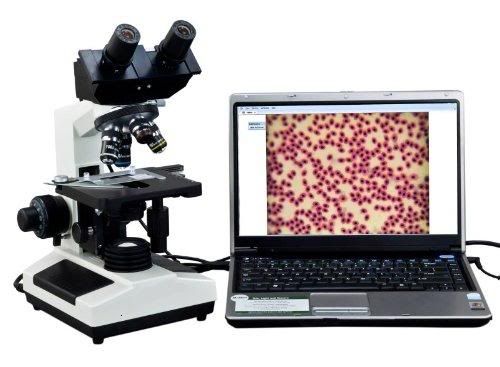

Please Note:(Picture showning here with the Laptop is not included only the Microscope) 3.0X Digital Microscope

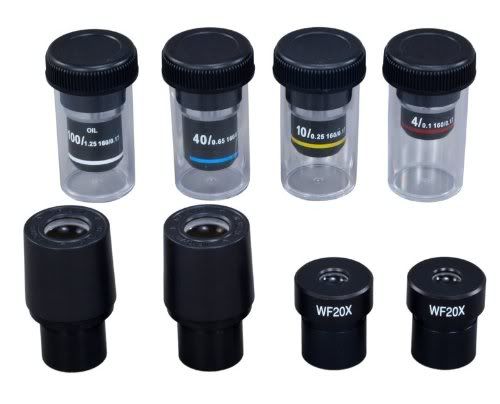

Eyepieces & Obj.

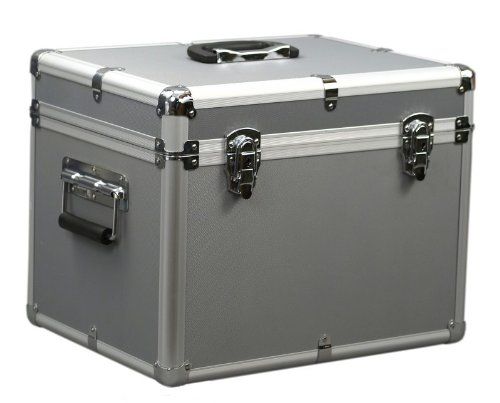

If you choose to purchase Aluminnum Case, this how it look like: Aluminnum Case

Aluminnum Case

Specifications (software):

Photobucket

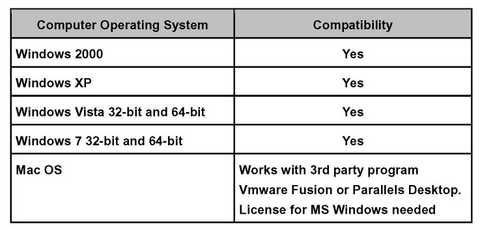

Please check the chart below for computer operating system compatibility

9.0

Compatible Table

Features:

  • Perfect for labs, clinics, universities, and high schools
  • High quality professional optical glass elements
  • 45°inclined 360°swiveling binocular digital head
  • 2048x1536 pixels (3.0MP) USB 2.0 digital camera with advanced software applications
  • 8 levels of magnification: 40x, 80x, 100x, 200x, 400x, 800x, 1000x, 2000x
  • 4 achromatic objectives DIN 4x, 10x, 40x(Spring), 100x(Spring,Oil)
  • 2 pairs of eyepieces: WF10X and WF20X
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eye tubes
  • Variable intensity illumination
  • High resolution images over a wide field view
  • Metal mechanical components
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Manufacturer in business 30+ years

Specifications:

  • Model: CPUSB3
  • Head: digital 45°Inclined 360°swiveling binocular
  • Built-in 2048x1536 pixel (3.0MP) USB 2.0 high resolution digital camera
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X and WF20X
  • Objective: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)
  • Total magnification: 40x, 80x, 100x, 200x, 400x, 800x, 1000x, 2000x
  • Transmitted (lower) illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris aperturel diaphragm
  • Power supply: AC 100V~240V 50/60Hz worldwide range (US and Canada plug)
  • Dimension: 11" x7-1/2" x 15" (28cm x 19cm x 38cm)
  • Net weight: 12 lb 9.5oz (5.47 kg)

Packing List:

  • Digital binocular microscope body
  • Microscope stand
  • Disc of drivers and application
  • USB2.0 cord
  • 4 objectives: 4x/10x/40x/100x
  • Eyepieces: a pair of WF10X and a pair of WF20X
  • A bottle of Immersion oil
  • Power cord (US and Canada standard)
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
  • Mirror
