Biological Microscope w Kohler Illumination + Plan Objectives
Biological Microscope w Kohler Illumination + Plan Objectives

Availability: Usually ships the same business day

KL828Regular price: $999.99Sale price: $499.99
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminnum Carry Case::
Add Vinly Carrying case::

Photobucket

Photobucket

Photobucket



Specifications



General



Model

KL828

Total Magnification

40X, 64X, 100X, 160X, 200X, 320X, 400X, 640X, 1000X, 1600X

Viewing Head

Binocular, inclined 45º, swiveling 360º

Interpupillary Distance

Sliding adjustment, 55mm ~ 75mm

Diopter Adjustment

On both eyepiece tubes

Eyepieces

1 pair of WF10X

1 pair of P16X

Nosepiece

Revolving, quintuple

Objectives

Plan objectives 4X, 10X, 20X, 40X(spring), 100X(spring, oil)

Condenser

Abbe, NA=1.25, w/ iris diaphragm and filter holder

Rack and pinion adjustment

Focus Mechanism

Coaxial coarse and fine focusing knobs on both sides w/ focus stop

Stage

Double layer mechanical stage

Dimension: 140mmx140mm (5-1/2” x 5-1/2”)

Movement range: 75mm X 50mm (3” x 2”)

Illumination

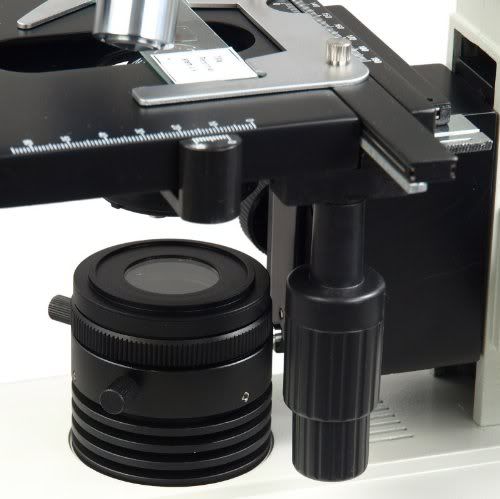

Transmitted Kohler illumination system, adjustable center of field diaphragm

Light bulb: 6V/20W, Halogen, Variable intensity

Power Supply

AC 100V ~ 240V, 50/60HZ (US and Canada plug)

Dimension

28cm x 19cm x 40 cm (11” x 7-1/2” x 15-3/4”)

Net weight

5.34kg (11lb 12oz)

Package weight

6.6 kg







Magnifications Eyepiece

10X

16X

10X

16X

10X

16X

10X

16X

10X

16X

Objective

4X

10X

20X

40X

100

Magnification

40X

64X

100X

160X

200X

320X

400X

640X

1000X

1600X







Features:

  • Perfect for labs, clinics, universities, and high schools
  • High quality professional optical glass elements
  • 45°inclined 360°swiveling binocular head
  • Easy to mount CCD camera (electronic eyepiece)
  • 2 pairs of eyepieces: WF10X/18 and P16X
  • Quintuple nosepiece (5 holes)
  • 5 plan objectives 4x, 10x, 20x, 40x, 100x (oil)
  • 10 levels of magnification: 40x-64x-100x-160x-200x-320x-400x-640x-1000x-1600x
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Variable intensity Kohler illumination with center adjustment
  • High resolution images over a wide field view
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Metal framework
  • Product GS and CE approved
  • Manufacturer in business 30+ years



Specifications:

  • Model: KL828
  • Head: 45°Inclined 360°swiveling binocular
  • Nosepiece: revolving quintuple (5 holes)
  • Eyepieces: wide field WF10X and P16X
  • 5 plan objectives: 4x, 10x, 20x, 40x, 100x(oil)
  • Total magnification: 40x-64x-100x-160x-200x-320x-400x-640x-1000x-1600x
  • Kohler Illumination system with center adjustment
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage x-y stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus adjustment: Coaxial coarse & fine knobs on both sides
  • Focusing knob can be locked for observation & transportation
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 100V~240V 50/60Hz wide voltage range, USA and Canada plug
  • Dimension: 11" x 7-1/2" x 15-3/4" (28cm x 19cm x 40cm)
  • Net weight: 11lb 12oz (5.34kg)
  • Package weight: 6.6kg

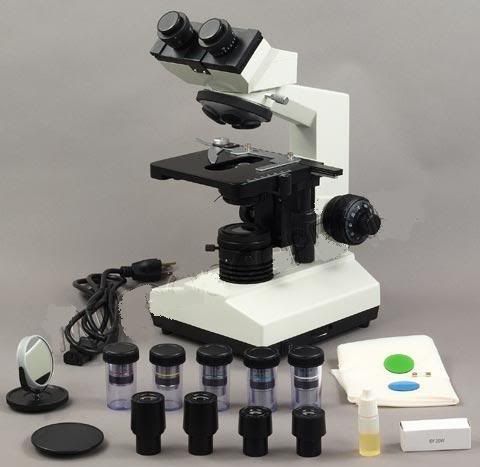

Packing List:

  • Binocular microscope with quintuple nosepiece
  • 5 plan objectives
  • Eyepieces: a pair of WF10X and a pair of P16X
  • A bottle of Immersion oil
  • Power cord (US and Canada standard)
  • Mirror for power outage
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
