Home  >  VGA / USB Digital Camera for Microscope / Cables  >  8.0MP USB Digital Camera for Microscope Compatible w/ Windows/Mac/Linux

8.0MP USB Digital Camera for Microscope Compatible w/ Windows/Mac/Linux
Click to enlarge8.0MP USB Digital Camera for Microscope Compatible w/ Windows/Mac/Linux

Availability: Usually ships the same business day

A1608Regular price: $799.99Sale price: $499.99

0.01mm Calibration Slide  photo slide0001_zps091abb87.jpg



  • 8.0MP (3264x2448 pixels) high resolution color digital camera
  • Advanced editing, processing and measuring software included
  • Compatible with Windows XP/Vista/ 7 (32/64-bit), Mac OS and Linux operating system
  • 0.5X reduction lens and 0.01mm calibration slide included
  • Install on standard C-mount or insert into eyepiece tube directly




  • Model: A1608
  • Image sensor: Aptina 1/2.5" color CMOS
  • Resolution: 3264x2448 pixels (8.0M pixels)
  • Pixel size: 1.67um x 1.67 um
  • SNR: 34dB
  • Dynamic Range 65.2dB
  • Frame speed: 1.9fps at 3264x2448, 8fps at 1600x1200, 27fps at 800x600
  • Interface: USB 2.0
  • Reduction lens: 0.5X, fit to 23.2mm eyepiece tube
  • 0.01 mm calibration slide: 1mm/100 division
  • Adapters fit 30mm and 30.5mm eyepiece tubes
  • Dimensions: φ63mmx37mm (no reduction lens)
  • Operating Environment: -30C to 70C
  • Power: Direct via USB port
  • Mounting: C-mount or eyepiece tube (23.2/30/30.5mm)

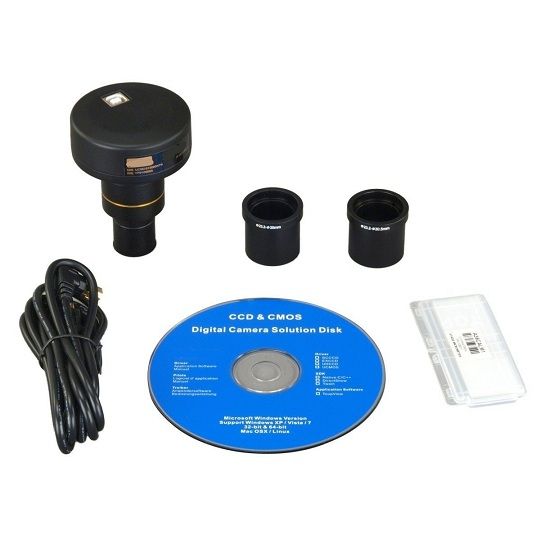

Packing List:

  • 8.0MP digital camera
  • 0.5X reduction lens
  • 1 CD including Driver, software and user's instruction
  • 23.2mm to 30mm adapter
  • 23.2mm to 30.5mm adapter
  • 0.01mm calibration slide (stage micrometer)
  • USB cable


 photo 14mps-01_zps6550f0bf.jpg

 photo 14mps_zps8d9cea36.jpg
