Home  >  SZB Stereo Zoom Microscope  >   Binocular Stereo Zoom Microscope+54 LED Ring Light ( 7X-45X)

Binocular Stereo Zoom Microscope+54 LED Ring Light ( 7X-45X)
Click to enlarge Binocular Stereo Zoom Microscope+54 LED Ring Light ( 7X-45X)

Availability: Usually ships the same business day

SZB-PSRL54Regular price: $999.99Sale price: $699.99
Microscope pod::
Add One WF10X/20mm Reticle Eyepiece::
Add One WF20X/10mm Reticle Eyepiece::
Add 0.5X Aux & WF20X Eyepiece::
USB Digital Camera::

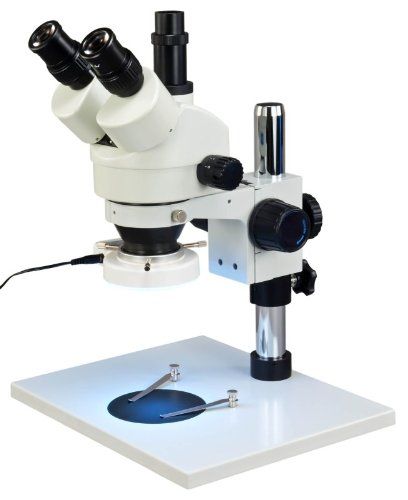

If you choose to purchase Trinocular Microscope,this is what you get. Photobucket

Features:

  • High quality optical glass elements
  • 10X high eyepoint widefield eyepieces
  • Zoom magnification from 7X to 45X
  • Sturdy table Stand with large base and 2 stage clips
  • 54 LED ring light provides shadowless illumination

Specifications:

  • Model: SZBST-L54
  • Total magnification: 7X - 45X
  • Microscope body
    - Binocular, 360 rotatable viewing head
    - 45 inclined ocular tubes
    - Diopter adjustment rings on both ocular tubes
    - Interpupillary distance adjustable: 47 ~ 73mm (1-3/4"~ 2-3/4")
    - Inner diameter of ocular tube: 30mm (1-3/16")
    - Mounting size for auxiliary lens: 48mm female thread
  • Eyepiece
    - A pair of high eyepoint widefield WF10X/20
  • Objective
    - Zoom 0.7X ~ 4.5X
    - Zoom ratio 6.5:1
  • Working distance
    - 100mm (3-15/16")
  • Field of view
    - Max. 30mm (1-3/16")
  • Illumination
    - 54 LED ring light
    - Intensity adjustable
    - Power input: AC 100V - 240V, 50/60Hz
    - 48mm ring light adapter included
  • Table stand
    - Focus adjustment: rack and pinion, range 48mm ( 1-7/8" ), tool-free tension adjustment
    - Body holder: 76mm ( 3" )in diameter, microscope body 360 rotatable
    - Post: metal, diameter 32mm ( 1-1/4" ), height 290mm ( 11-1/2")
    - Base: metal, 320mm x 260mm x 20mm (12-5/8" x 10-1/4" x 3/4"), with 2 stage clips and a 100mm ( 4" ) black/white plastic stage plate
  • Net weight
    - 5.65 kg ( 12 lb 7oz)

Packing List:

  • Binocular stereo microscope body
  • A pair of WF10X/20 eyepieces
  • A pair of rubber eyeshields
  • A full set of table stand
  • 54 LED ring light with AC power adapter
  • 48 mm thread ring light adapter
