Home  >  Compound / Metallurgical / Inverted & More  >  40X-1600X Professional EPI-Fluorescence Trinocular Compound Microscope

40X-1600X Professional EPI-Fluorescence Trinocular Compound Microscope
Click to enlarge40X-1600X Professional EPI-Fluorescence Trinocular Compound Microscope

Availability: Usually ships the same business day

M834-FLR01Regular price: $2,999.99Sale price: $2,499.99
USB Digital Camera::

Professional EPI-Fluorescence Trinocular

Professional EPI-Fluorescence Trinocular

Professional EPI-Fluorescence Trinocular

Specifications:

  • Model: M834-FLR01
  • Widely used in medical, biological research areas for disease examination and immune diagnosis
  • Top quality professional optical glass elements
  • Fluorescent kit power supply system: 100W, AC input 230V/115V 50 Hz/ 60 Hz (interchangeable) with digital displays for Life Time (h.m) and Current (A)
  • Microscope power: 110V/60Hz (USA and Canada)
  • Fluorescence illumination system with blue, green exciting light filter systems and ordinary light system
  • 100W HBO ultra Hi-voltage spherical Mercury lamp
  • Protection barrier (suppression filter) to resist the ultraviolet light
  • Easy to mount USB camera (electronic eyepiece) to catch ordinary and high contrast fluorescent images
  • Rotatable trinocular head: 30°Inclined 360° swiveling compensation free
  • 2 pairs of eyepieces: WF10X and P16X
  • 4 high quality fluorescent free objectives: FLUOR 4x, 10x, 40x(S), 100x(S,Oil)
  • 8 Levels of magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x
  • Reversed ball bearing quadruple nosepiece with wide knurled grip for easy operation
  • Hinged eye tubes with compensation free interpupillary distance adjustment
  • Ocular diopter adjustable
  • Focus adjustment: Coaxial coarse & fine knobs on both sides with adjustable tension control
  • Long focusing distance (vertical stroke)
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Large stain-resistant double layer stage can hold two parallel slides
  • Sturdy metal mechanical framework
  • Product GS and CE approved
  • Manufacturer in business 30+ years

Microscope Head:

  • Rotatable trinocular anti-mould viewing head:30°Inclined 360° swiveling compensation free
  • Interpupillary adjustment mechanisms: 2-3/16" - 3.0" (55 mm-75 mm)
  • Mechanical tube length: 6-5/16" (160 mm)
  • Easy to mount USB digital camera
  • Reversed ball bearing quadruple nosepiece
  • Adjustable diopter on ocular


Magnifications and Objectives:



  • 2 pairs of eyepieces: WF10X (18mm field of view) and P16X
  • 4 high quality fluorescence free objectives: FLUOR 4x (0.1 NA), 10x (0.25 NA), 40x (0.65 NA, Spring), 100x (1.25 NA, Spring,Oil)
  • 8 Levels of magnification: 40x-64x-100x-160x-400x-640x-1000x-1600x


EPI-Fluorescent Illumination Kit:

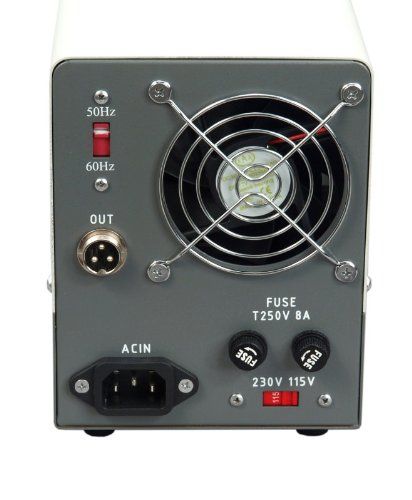

  • Power supply system: 100W, AC input 230V/115V 50 Hz/ 60 Hz (interchangeable) with digital displays for Life Time (h.m) and Current (A)
  • Fluorescence light source with blue, green exciting light filter systems and ordinary light system
  • Three-position fluorescent filter slider assembly for blue, green and brightfield microscope
  • Three- setting fluorescent excitation light path control dial: no light, partial light and full light
  • Fluorescent light condenser with moving-control knob
  • Fluorescent light field diaphragm with centering control adjustment
  • Exciting filters: blue filter and green filter
  • Two exciting light waves: blue light and green light
  • Blue exciting light spectrum range: 405 nm - 435 nm (often used in immune diagnosis, observation of cancer and blood cells with FITC, QM, Acridine Orange or Auramine Staining methods)
  • Green exciting light spectrum range: 510 nm - 546 nm (normally with TRITC, RB200 or Feulgen staining)
  • Color dichotic mirror
  • Battier filters
  • 100 W HBO ultra Hi-voltage spherical Mercury lamp

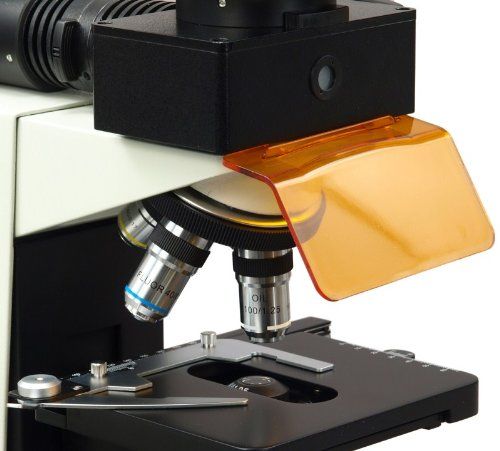

  • Protection barrier (suppression filter or front light baffle) to resist the ultraviolet light
  • Fluorescence free oil


Microscope Lower Illumination (for non-fluorescence use):

  • Intensity-variable transmitted halogen lighting system with 6V/20W halogen bulb
  • Power supply: 110V/60Hz (US and Canada)
  • Kohler illumination system with field diaphragm for lighting control

Condenser:

  • NA1.25 Abbe condenser with Iris diaphragm and swing-out filter holder
  • Rack and pinion adjustment for condenser
  • 2 filters

Focusing:

  • Coaxial coarse and fine focus adjustment with adjustable tension control
  • Focusing knobs on both sides
  • Long focusing distance (vertical stroke)
  • Focusing range: 1-3/16" (30 mm)
  • Division of fine focusing: 0.002 mm

Stages:

  • Large mechanical stain-resistant double layer stage can hold two parallel slides
  • Stage Dimensions: 5-1/2" x 6-5/16" (140 mm x 160 mm)
  • Stage traveling range (X-Y stroke): 2-3/4" x 2.0" (70 mm x 50 mm)

Others:

  • Sturdy metal framework
  • 2 shipping packages: 27 lbs (12 kg) & 15 lbs (7 kg)

Packing List:

  • Trinocular compensation-free microscope head
  • A pair of WF10X and a pair of P16X
  • Power cord (US and Canada standard)
  • Allen key for head mount
  • Focus knob tension adjusting wrench
  • Dust cover
  • Color filters
  • Extra halogen bulb (6V/20W)
  • Extra fuses
  • One complete set of fluorescent kit (including florescent illumination system; power supply; 4 fluorescent free objectives: 4x, 10x, 40x, 100x; Mercury bulbs; protection barrier; fuses and fluorescent free oil)
