Home  >  Portable Microscope  >  40X-400X Portable Inverted Compound Microscope

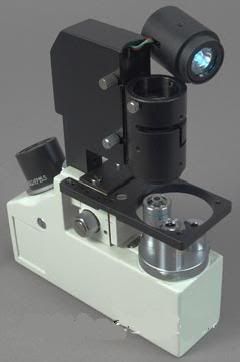

40X-400X Portable Inverted Compound Microscope
Click to enlarge40X-400X Portable Inverted Compound Microscope

Availability: Usually ships the same business day

PIC-100Regular price: $499.99Sale price: $399.99

Photobucket

Portable Inverted Microscope

Portable Inverted Microscope

Photobucket

This portable inverted microscope is perfect for scientists, lab technicians, field biologists, wastewater inspectors, and etc. This product is made by manufacturer in business over 30 years, with high quality professional optical glass elements and metal mechanical components.

This microscope has a small dimension and light weight. It works on two AA batteries. The metal body and metal mechanical mechanism makes it sturdy and durable.

Features & Specifications:

Model

PIC-100

Total Magnification

40X, 100X, and 400X

Eyepieces

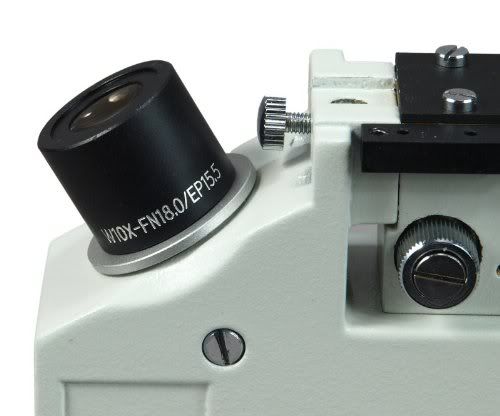

A widefield W10X - FN18.0 / EP15.5

Objectives

4X, NA0.08, working distance 16 mm
10X, NA0.25, working distance 3.6 mm
40X, NA0.60, working distance 0.6 mm

Nosepiece

Revolving, triple

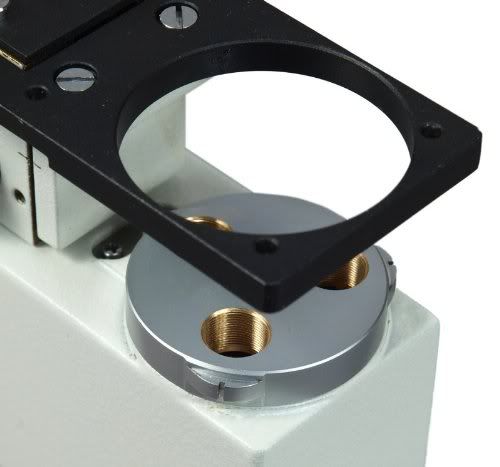

Stage

Plain stage with 2 clips
Dimension 1-3/4" x 2-1/4" (45 mm x 57mm)
OpeningΦ 1-5/8" in diameter

Condenser

Built-in

Focusing Mechanism

Focus knobs on both side
Focus range: up 1.6 mm, down 1 mm

Illumination

0.1W LED

Power Supply

2 AA batteries (not included)

Dimension

5-1/2" x 1-3/4" x 7-1/4" (14 cm x 4.5 cm x 18.5cm)

Net weight

2 lb 4 oz (1.03 kg)



Packing List:

  • Microscope main body
  • Microscope illumination portion
  • 2 stage clips
