40X-2000X Phase Contrast Compoud LED Siedentopf Microscope+PLAN Obj.
Click to enlarge40X-2000X Phase Contrast Compoud LED Siedentopf Microscope+PLAN Obj.

Availability: Usually ships the same business day

M8311-PHB1KT02Regular price: $1,699.99Sale price: $1,099.99
USB Digital Camera::
Add 100 PCS Slides & Cover Slips::
Add Aluminnum Carry Case::
Add Vinly Carrying case::

Photobucket

Photobucket

Photobucket

Photobucket

Features:

  • High quality optical glass elements
  • High definition images
  • Eight Levels of magnification: from 40X to 2000X
  • 2 sets of objectives - achromatic objectives for bright field microscopy and PLAN phase contrast objectives
  • 30°inclined 360°rotatable Siedentopf trinocular viewing head
  • Reversed quadruple nosepiece
  • Variable intensity transmitted 3W LED light
  • Sharp image over a wide field view
  • Coaxial coarse and fine focus adjustment with tension control
  • X-Y mechanical stage with measurement
  • Abbe condenser NA1.25 with iris aperture diaphragm
  • Phase contrast condenser disk with 5 switchable positions
  • Interpupillary distance adjustable
  • Adjustable diopters on left ocular-tubes
  • Solid metal base and stand
  • Manufacturer in business 30+ years



Specifications:

  • Model: M8311-PHB1KT02
  • Eyepieces: wide field WF10X/18 and WF20X
  • Head: 30°Inclined 360°rotatable trinocular Siedentopf
  • Interpupillary: hinge adjustment 48mm - 75mm
  • Diopter: adjustable on left eyepiece tube
  • Nosepiece: revolving, quadruple, reversed
  • Bright field objective: achromatic DIN 4X, 10X, 40X (spring), 100X (spring, oil)
  • Phase contrast objectives (in phase contrast kit): PLAN phase contrast objectives 10X, 20X, 40X(S), 100X(S, Oil)
  • Total magnification for bright field: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Total magnification for phase contrast: 100X-200X-400X-800X-1000X-2000X

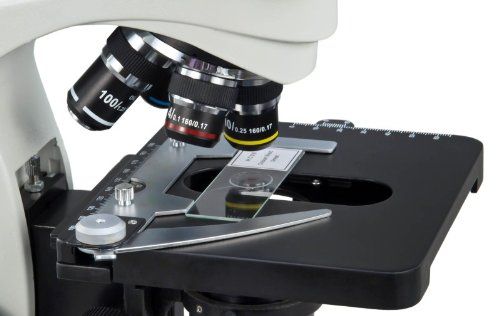

  • Stage: X-Y mechanical stage with scales, range 78mm x 40mm, dimension 110mm x 140mm
  • Focus: Coaxial coarse and fine focus knobs on both sides, rack and pinion adjustment, with tension control and stop
  • Illumination: Transmitted 3W LED light, intensity adjustable
  • Condenser: Abbe NA1.25 with iris aperture diaphragm and filter holder, rack & pinion adjustment

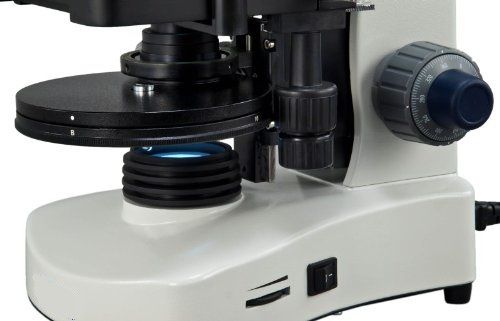

  • Phase contrast condenser disk with 5 switchable positions: one bright field NA1.25 w/ iris diaphragm Abbe condenser and four phase contrast filters, 10X, 20X, 40X, 100X, each can be centered individually
  • Power supply: 110V/220V (switch at the bottom)
  • Size of microscope: 12" x 8" x 15" (31cm x 20cm x 39cm)
  • Size of phase contrast kit: 12" x 9" x 5-11/16" (30.5 cm x 23 cm x 14.5 cm)
  • Net weight of microscope: 10 lbs 13 oz (4.9 kg)
  • Net weight of phase contrast set: 3 lbs 11 oz (1.675 kg)
  • Two shipping packages: 20 lbs (9 kg) & 4.4 lbs (2 kg)



Packing List:

Package 1:

  • Trinocular Siedentopf microscope head
  • Photo tube for digital cameras
  • Microscope stand and base
  • Objective 4X, 10X, 40X(S), and 100X(S, Oil)
  • Eyepieces: a pair of WF10X and a pair of WF20X
  • Color filter: Green
  • 1 bottle of immersion oil
  • Power cord (US and Canada standard)
  • Focus tension adjustment wrench
  • Dust cover
  • Extra fuse (in the fuse holder of the microscope)

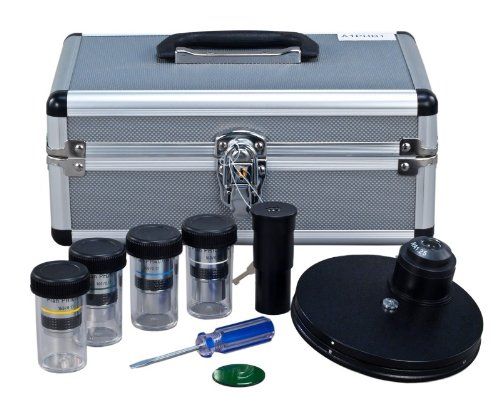

Package 2:

  • One centering telescopic eyepiece
  • 4 PLAN phase contrast objectives: 10X, 20X, 40X, and 100X
  • One condenser disk with bright field condenser and 4 phase contrast filters
  • One green filter
  • One screw driver
  • One aluminum storage and carrying box
