Home  >  Compound / Metallurgical / Inverted & More  >  40X-2000X Built-in 1.3MP Digital Binocular Compound Microscope

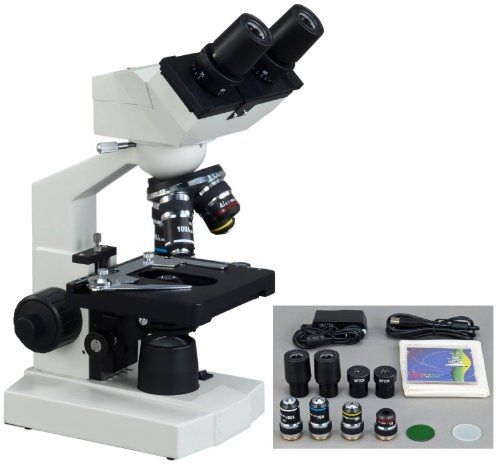

40X-2000X Built-in 1.3MP Digital Binocular Compound Microscope
Click to enlarge40X-2000X Built-in 1.3MP Digital Binocular Compound Microscope

Availability: Usually ships the same business day

M83Regular price: $799.99Sale price: $399.99

M83

M83

M83

Features:

  • High quality professional optical glass elements
  • 45°inclined 360°swiveling binocular digital viewing head
  • 1280x1024 pixels (1.3MP) USB digital camera with advanced software applications
  • 8 levels of magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x
  • 4 achromatic objectives DIN 4x, 10x, 40x(S), 100x(S,Oil)
  • 2 pairs of eyepieces: WF10X and WF20X
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Metal framework
  • Variable intensity illumination
  • Coaxial coarse and fine focus adjustment
  • Focusing knobs on both sides
  • Stage upward moving lock protects objectives and slides
  • Stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm & filters
  • Rack and pinion adjustment condenser
  • Manufacturer in business 30+ years

Specifications:

  • Model: MD83
  • Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x
  • Eyepieces: wide field WF10X and WF20X
  • Objectives: achromatic DIN 4x, 10x, 40x(S), 100x(S, Oil)

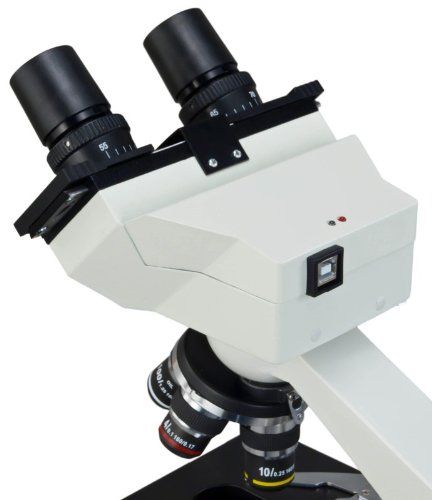

  • Viewing head: 45°Inclined 360°swiveling digital binocular
  • Built-in 1280x1024 pixel (1.3MP) USB high resolution digital camera
  • Sliding adjustable interpupillary distance: 2-3/16" ~ 2-15/16"(55~75mm)
  • Ocular diopter adjustable on both eyetubes
  • Nosepiece: revolving quadruple
  • Stage: mechanical double layer: 4-1/2"x 4-15/16" (115mm x 125mm)
  • Stage x-y stroke (travel range): 2-13/16" x 1-3/16" (70mm x 30mm)
  • Condenser & diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Transmitted (lower) illuminator: LED light, intensity adjustable
  • Focus adjustment: Coaxial coarse & fine knobs on both sides, rack stop
  • Power supply: AC/DC adapter,
    - Input: 100-240VAC, 50/60Hz, 0.5A
    - Output: 7.5V, 1000mA
  • Dimension: 7-1/8" x 9-1/16" x 13" (18cm x 23cm x 33cm)
  • Net weight: 7 lbs 5 oz (3.32 kg)
  • Shipping Package: 4.15 kg

Packing List:

  • Binocular microscope with 4 DIN objectives

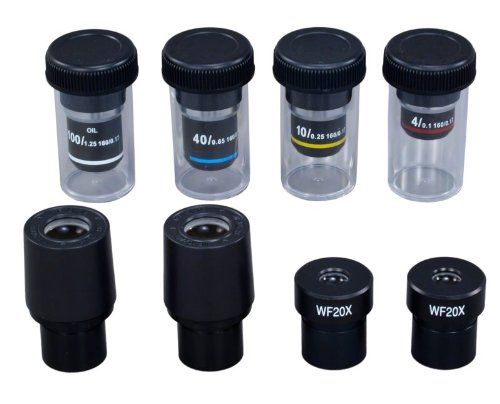

  • Eyepieces: a pair of WF10X and a pair of WF20X
  • A bottle of Immersion oil
  • AC adapter (US and Canada standard)
  • Dust cover
  • Color filters
  • CD (camera driver and software)
  • USB2.0 cable
