Home  >  SZB Stereo Zoom Microscope  >  2MP Digital Zoom Articulating Arm Microscope with 54 LED Ring Light (3.5X-90X)

2MP Digital Zoom Articulating Arm Microscope with 54 LED Ring Light (3.5X-90X)
Click to enlarge2MP Digital Zoom Articulating Arm Microscope with 54 LED Ring Light (3.5X-90X)

Availability: Usually ships the same business day

SZTAF02PK2MPRegular price: $1,899.99Sale price: $1,099.99
Add Dust Cover::

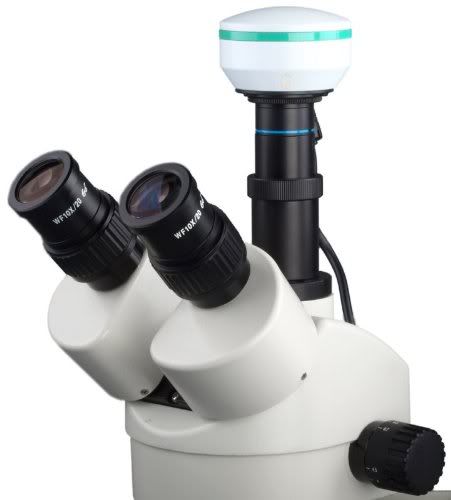

Note:(Laptop showning on this picture is not included) szt2mp

sztaf02pk2mp

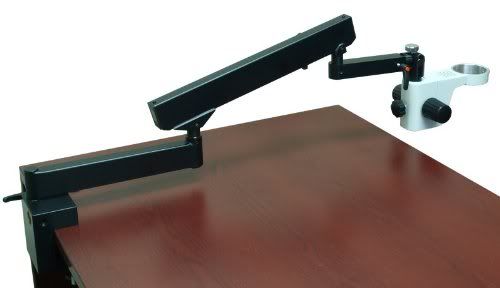

Articulating Arm on Table Clamp

AF02 Articulating Arm on Post Clamp

If you add Dust Cover, this how it look like:  photo c6fa386e-adf0-44d8-854b-7b07f4618809_zpsd0c6361b.jpg

Features:

  • Plug and see, no special knowledge needed
  • High quality optical glass elements
  • 10X and 20X high eyepoint widefield eyepieces
  • Sturdy articulating arm boom stand provides large working space
  • 400mm high vertical stand post allows long working distance
  • 144 LED ring light included
  • 1600x1200 high resolution USB camera included
  • Compatible with Windows 2000/XP/Vista/Windows 7 32/64-bit, Mac OS.

Specifications

  • Model
    - SZTAF02PK2MP
  • Total magnification
    - 3.5X ~ 90X
  • Microscope body
    - Trinocluar, 360 rotatable viewing head
    - 45 inclined ocular tubes
    - Diopter adjustment rings on both ocular tubes
    - Interpupillary distance adjustable: 1-3/4"~ 2-3/4" (47 ~ 73mm)
    - Pulling bar to switch the light path from left ocular tube to photo tube
    - Inner diameter of ocular tube: 30mm
    - Inner diameter of photo tube: 23.2mm
    - Mounting size for auxiliary lens: 48mm female thread
  • Eyepiece
    - A pair of high eyepoint widefield WF10X/20
    - A pair of high eyepoint widefield WF20X/10
  • Objective
    - Zoom 0.7X ~ 4.5X
    - Zoom ratio 6.5:1
    - Auxiliary objective: 0.5X
  • Working distance
    - 100mm (3-15/16") without 0.5X auxiliary lens
    - 165mm (6-1/2") with 0.5X auxiliary lens on
  • Field of view
    - Max. 30mm (1-3/16") without 0.5X auxiliary lens
    - Max. 60mm (2-3/8") with 0.5X auxiliary lens

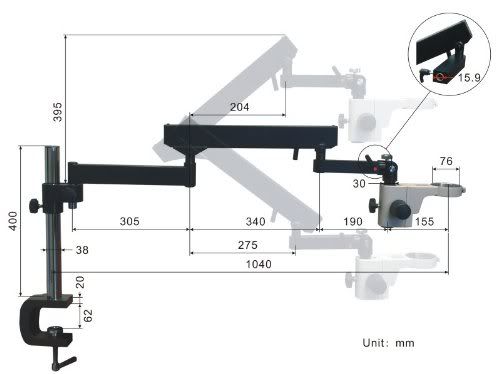

  • Articulating arm boom stand
    - Table clamp: Max. opening 2.4" (62mm)
    - Articulating arm: Spring loaded for easy operating, multi-arm provides more flexibility
    - 360 rotating horizontally
    - Radius of working area: Max. 41" (104cm)
    - Diameter of microscope body holder: 3" (76mm)
    - Focus block: rack and pinion adjustment, range 55m
  • Illumination
    - 54 LED ring light
    - Intensity adjustable
    - Power adapter: input AC100V ~ 240V, 50/60Hz, output DC 12V
    - 48mm ring light adapter included
  • Camera
    - Resolution: 1600x1200 pixels, (2.0MP)
    - Interface: USB2.0
    - Image sensor: 1/3.2" CMOS
    - Compatible with MS Windows 2000, XP, Vista (32/64), Windows 7 (32/64), and Mac OS.
    - Software for PC: live viewing, video recording, image capturing and measurement
    - Software for Mac: Live viewing and capture
    - 0.45 reduction lens included
  • Net weight
    - 31.5 lbs (14.33 kg)

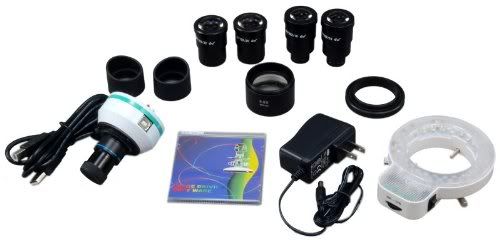

Packing List:

  • Trinocular stereo microscope body
  • A pair of WF10X/20 eyepieces
  • A pair of WF20X/10 eyepieces
  • A pair of rubber eyeshields
  • Add-on 0.5x auxiliary objective lens
  • A full set of articulating arm boom stand
  • 54 LED ring light with AC power adapter and power cord
  • 48 mm thread ring light adapter
  • 2.0MP Camera (with 0.45X lens, USB cable and CD)
