Home  >  Compound / Metallurgical / Inverted & More  >   Compound LED Siedentopf Microscope+Aluminum Carrying Case(40X-2000X)

Compound LED Siedentopf Microscope+Aluminum Carrying Case(40X-2000X)
Click to enlarge Compound LED Siedentopf Microscope+Aluminum Carrying Case(40X-2000X)

Availability: Usually ships the same business day

M8211-CASE01Regular price: $999.99Sale price: $519.99
Microscope pod::
Add USB Digital Camera::

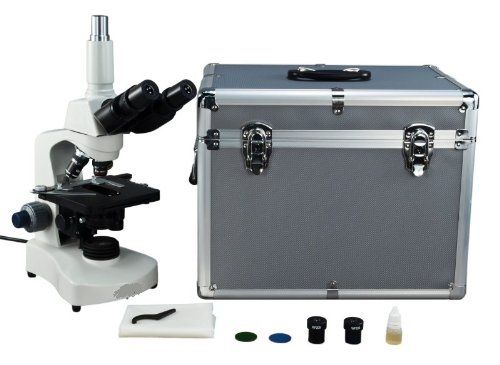

If you choose to purchase Trinocular Microscope, this is how it look like Photobucket

Photobucket

Features:

  • High quality optical glass elements
  • High definition images

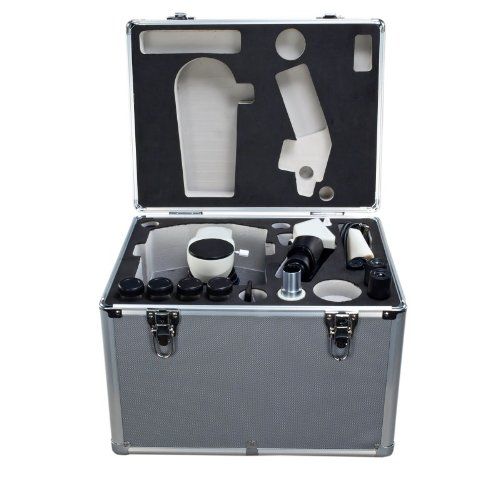

  • Aluminum case with die cut foam provides secure support
  • Heavy duty handles and secure locks
  • 8 levels of magnification: from 40X to 2000X
  • 4 achromatic objective DIN 4X, 10X, 40X (S), 100X (S, Oil)
  • 30°inclined 360°rotatable Siedentopf binocular head
  • Reversed quadruple nosepiece
  • Variable intensity transmitted bright 3W LED light
  • Sharp image over a wide field view
  • Coaxial coarse and fine focus adjustment with tension control
  • X-Y mechanical stage with measurement
  • Abbe condenser NA1.25 with iris aperture diaphragm
  • Interpupillary distance adjustable
  • Adjustable diopters on left ocular-tubes
  • Solid metal base and stand
  • Manufacturer in business 30+ years

Specifications:

  • Model: M8211-Case
  • Total magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Eyepieces: wide field WF10X/18 and WF20X
  • Objective: achromatic DIN 4X, 10X, 40X (spring),100X (spring,oil)
  • Head: 30°Inclined 360°rotatable binocular Siedentopf
  • Interpupillary: hinge adjustment 48mm - 75mm
  • Diopter: adjustable on left eyepiece tube
  • Nosepiece: revolving, quadruple, reversed
  • Stage: X-Y mechanical stage with scales, translation range 78mm x 40mm, dimension 110mm x 140mm
  • Focus: Coaxial coarse and fine focus knobs on both side, rack & pinion adjustment, with tension control and stop
  • Illumination: Transmitted 3W LED light, intensity adjustable
  • Condenser: Abbe NA1.25 with iris aperture diaphragm and swing-out filter holder, rack & pinion adjustment
  • Power supply: 110V/220V (switch at the bottom)
  • Dimension of microscope: 12" x 8" x 15" (31 x 20 x 39cm)
  • Outer dimensions: 17" x 12.5"x 11.75" (43.5 x 32 x 30cm)
  • Lower part inner dimensions: 16.5" x 12" x 7.5" (42 x 30.5 x 19 cm)
  • Upper part inner dimensions: 16.5" x 12" x 2.75" (42 x 30.5 x 7 cm)
  • Net weight: 21 lbs 14.5 oz (9.95 kg)
  • Shipping package: 22 lbs (10 kg)

Packing List:

  • Aluminum case
  • Binocular microscope Siedentopf head
  • Microscope stand and base
  • 4 objectives: 4X, 10X, 40X, and 100X
  • Eyepieces: 2 WF10X/18 and 2 WF20X
  • Color filter: Green
  • 1 bottle of immersion oil
  • Power cord (US and Canada standard)
  • Focus tension adjustment wrench
  • Dust cover
  • Extra fuse (in the fuse holder of the microscope)
