Home  >  SZ2 Stereo Zoom Microscope  >  1.3MP Digital 7X - 30X Zoom Stereo Microscope with Dual LED Lights

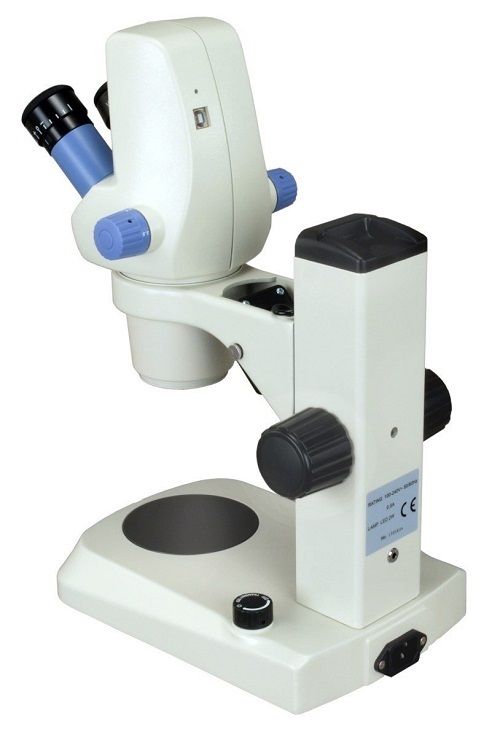

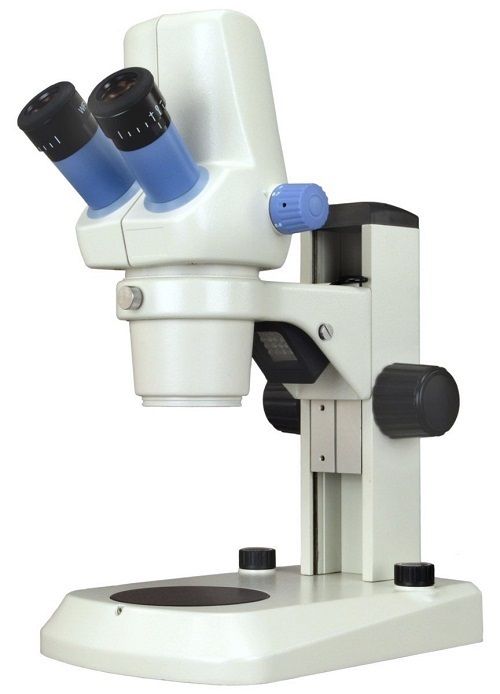

1.3MP Digital 7X - 30X Zoom Stereo Microscope with Dual LED Lights
1.3MP Digital 7X - 30X Zoom Stereo Microscope with Dual LED Lights

Availability: Usually ships the same business day

SZ3DRegular price: $1,299.99Sale price: $799.99

 photo SZ3D-01_zps8cxvukvt.jpg

 photo SZ3D-02_zpskvuwhjsf.jpg

 photo SZ3D-SFT_zps2b3fb697.jpg

 photo SZ3D-CMP_zps8a607101.jpg

The binocular stereo microscope SZ3D is designed for professionals in academic, medical and industrial area. This microscope features long working distance, widefield eyepieces with diopter adjustment on both eyepieces. Matrix LED upper and bottom lights provide brigth and even light. With the built-in 1.3MP digital camera, the images observed can be displayed on a computer screen and can be saved as pictures and video clips. This microscope is made by manufacturer in business over 30 years.

Features:

  • Built-in 1.3MP digital camera, driver and software included
  • Widefield eyepieces with diopter adjustment
  • Upper and bottom bright matrix LED lights
  • 96 mm long working distance
  • 7X - 30X zoom magnifications adjustment

Specifications:

  • Model: SZ3D
  • Total magnification: Zoom 7X to 30X
  • Working distance: 97mm ( 3-13/16" )
  • Field of view:
    - 29.5mm ( 1.161" ) at 7X magnification
    - 6.8mm ( 0.268" ) at 30X magnification
  • Eyepieces:
    - Widefield WF10X/20
    - Diopter adjustment on each eyepieces
  • Objectives:
    - Zoom 0.7X to 3X
    - Zoom ratio 4.3:1
  • Microscope body:
    - Binocular, 45 ° inclined, 360 ° rotatable
    - Interpupillary distance: 55mm to 75mm ( 2-3/16" to 2-15/16" )
    - Zoom knobs on each sides
    - Auxiliary objective thread: female 50mm thread
    - Outer diameter of objective end (for ring light mounting): Φ59mm ( 2-5/16" )
  • Stage:
    - White/black plastic stage plate, Φ95mm ( 3-3/4" )
    - Glass stage plate, Φ95mm ( 3-3/4" )
  • Focusing:
    - Adjustment knobs on each side
    - Adjusting range: 105mm
    - Tool-free tension adjustment
  • Illumination:
    - Incident (Upper light): 12 Matrix LED light, with own switch/intensity knob
    - Transmitted (bottom light): 7 LED light, with own switch/intensity knob
  • Power supply: AC 100 - 240V, 50/60Hz, 0.5A
  • Digital camera:
    - Resolution: 1280 x 1024 pixels ( 1.3MP )
    - Image sensor: 1/2.5" CMOS
    - Interface: USB 2.0 high speed
    - Driver and software included
    - Able to capture images, recording live videos, measuring lengths, angles, areas, editing images
    - Working temperature: -30 °C to 70 °C
  • Dimension: Width 18.4cm, Deep 29cm, Height (at working distance) 37cm ( 7-1/4" x 11-7/16" x 14-9/16" )
  • Net weight: 4.9 kg ( 10 lb 12 oz)
  • Gross weight: 6.8 kg ( 15 lb )

Packing List:

  • Digital microscope body
  • Stand
  • A pair of eyepieces: WF10X/20
  • Mini CD ( Driver, software and manual are inside )
  • Glass stage plate
  • White/black plastic stage plate
  • Power cord
  • USB 2.0 cord
  • Extra fuses
  • Allen Key
  • Dust cover
