Home  >  VGA / USB Digital Camera for Microscope / Cables  >  14MP USB3.0 Digital Camera for Microscope Compatible w/ Windows/Mac/Linux

14MP USB3.0 Digital Camera for Microscope Compatible w/ Windows/Mac/Linux
Click to enlarge14MP USB3.0 Digital Camera for Microscope Compatible w/ Windows/Mac/Linux

Availability: Usually ships the same business day

USB14MP-3Regular price: $1,699.99Sale price: $1,100.00

 photo A35140U3-SFT_zps2d6a5f3e.jpg

 photo A35140U3-CMP_zps18ef25a8.jpg

Features:

  • High speed USB 3.0 port (compatible with USB 2.0)
  • 13.5MP (4096x3286 pixels) high resolution color digital camera

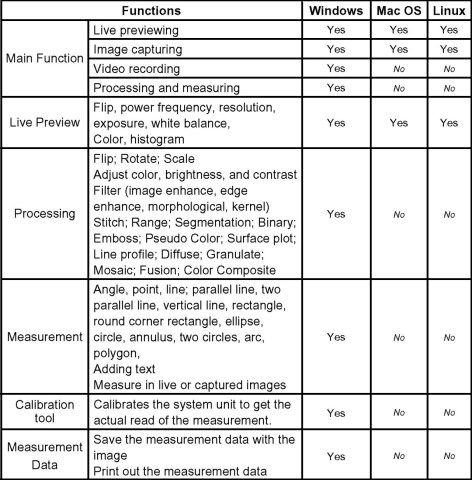

  • Advanced editing, processing and measuring software included

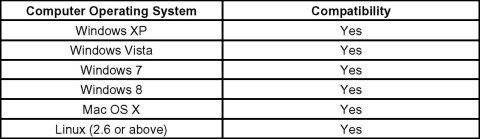

  • Compatible with Windows, Mac OS and Linux operating system
  • 0.5X reduction lens and 0.01mm calibration slide included



Specifications:

Hardware:

  • Model:USB14MP
  • Image sensor: Aptina 1/2.3" color CMOS
  • Resolution: 4096x3286 pixels (13.5M pixels)
  • Pixel size: 1.40 um x 1.40 um
  • SNR: 35.5 dB
  • Dynamic Range: 65.3 dB
  • Frame speed: 6.2fps at 4096x3286, 54fps at 1024x822
  • Interface: USB 3.0 (compatible with USB 2.0)
  • Reduction lens: 0.5X, fit to 23.2mm eyepiece tube
  • 0.01 mm calibration slide: 1mm/100 division
  • Adapters fit 30mm and 30.5mm eyepiece tubes
  • Dimensions: 68mm x 68mm x 45mm (no reduction lens on)
  • Operating Temperature: -10C to 50C
  • Power: Direct via USB port
  • Mounting: C-mount or eyepiece tube (23.2mm/30mm/30.5mm)

Packing List:

  • 14 MP digital camera (USB3.0)
  • 0.5X reduction lens
  • 1 CD including Driver, software and user's instruction
  • 23.2mm to 30mm adapter
  • 23.2mm to 30.5mm adapter
  • 0.01mm calibration slide (stage micrometer)
  • USB 3.0 cable
