14MP USB Digital Camera for Microscope Compatible w/ Windows/Mac/Linux
Click to enlarge14MP USB Digital Camera for Microscope Compatible w/ Windows/Mac/Linux

Availability: Usually ships the same business day

A1600Regular price: $999.99Sale price: $649.99

Photobucket

14MP

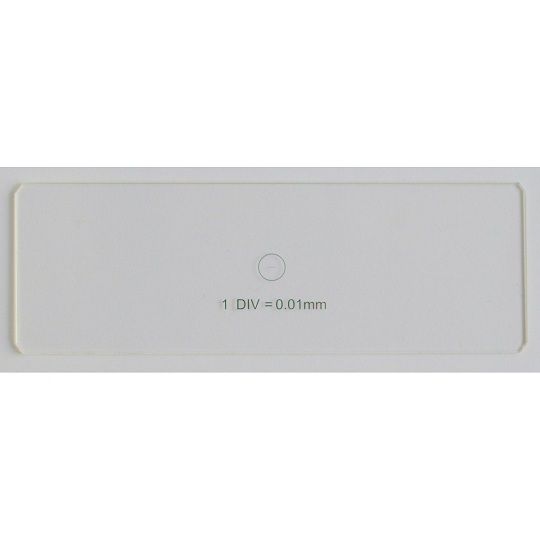

0.01mm Calibration Slide  photo slide0001_zps091abb87.jpg

14MP USB DIGITAL CAMERA

Features:

  • 14MP (4096x3288 pixels) high resolution color digital camera
  • Advanced editing, processing and measuring software included
  • Compatible with Windows XP/Vista/ 7 (32/64-bit), Mac OS and Linux operating system

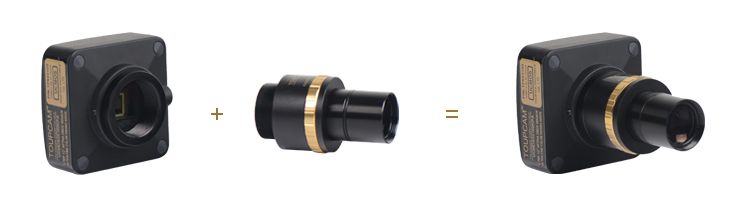

  • 0.5X reduction lens and 0.01mm calibration slide included

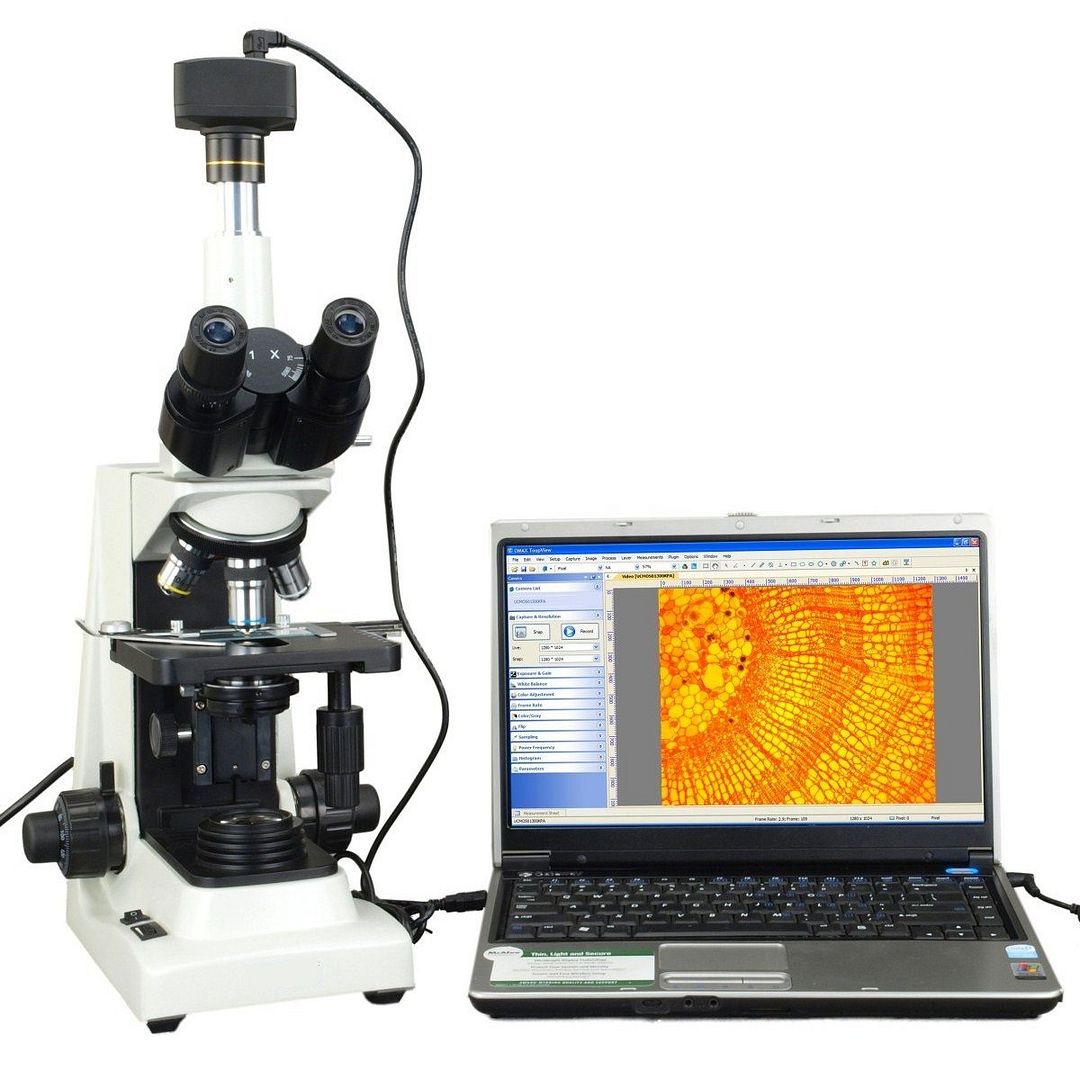

  • Install on standard C-mount or insert into eyepiece tube directly



Specifications:

Hardware:

  • Model: A1600
  • Image sensor: Aptina 1/2.3" color CMOS
  • Resolution: 4096x3288 pixels (14M pixels)
  • Pixel size: 1.4 um x 1.4 um
  • SNR: 35.5dB
  • Dynamic Range 65.3dB
  • Frame speed: 1.8fps at 4096x3288, 10fps at 2048x1644, 27fps at 1024x822
  • Interface: USB 2.0
  • Reduction lens: 0.5X, fit to 23.2mm eyepiece tube
  • 0.01 mm calibration slide: 1mm/100 division
  • Adapters fit 30mm and 30.5mm eyepiece tubes
  • Dimensions: 68mm x 68mm x 44mm (no reduction lens)
  • Operating Environment: -30C to 70C
  • Power: Direct via USB port
  • Mounting: C-mount or eyepiece tube (23.2/30/30.5mm)
  • Cross weight: 0.79 kg

Packing List:

  • 14MP digital camera
  • 0.5X reduction lens
  • 1 CD including Driver, software and user's instruction
  • 23.2mm to 30mm adapter
  • 23.2mm to 30.5mm adapter
  • 0.01mm calibration slide (stage micrometer)
  • USB cable



HARDWARE CONFIGURATION

Image Pickup Device

Aptina MT9F002 CMOS (Color)

Scan Mode

Progressive

Max.Resolution

4096 x 3286 (Approx. 13,500,000 Pixels)

Sensor Size (Diagonal)

1/2.3 (6.451mm(H) x 4.603mm(V), Diagonal 7.925mm)

Pixel Size

1.40μm x 1.40μm

Imaging Area

5.734mm(H) x 4.600mm(V)

Dynamic Range

65.3dB

A/D Converter

12-bit on Board, 8-bit R-G-B Processed

SN Ratio

35.5dB

Spectral Range

380-650nm (with IR-cut Filter)

Responsivity

0.724V/lux-sec(550nm)

Video Format & Max.Frame Rate

6.2fps @4096 x 3286, 21fps @2048 x 1644, 54fps @1024 x 822

Binning

1 x 1, 2 x 2, 4 x 4

Output Rate

95.83MBytes/s

Exposure

0.1ms~2s, ROI Auto & Manual

White Balance

ROI White Balance/ Manual Temp Tint Adjustment

Color Rendering Technique

Ultra-FineTM Color Engine

Capture/Control API

Native C/C++, C#, DirectShow, Twain and Labview

Peak Quantum Efficiency

N/A

Readout Noise

N/A

Extinction Ratio

N/A

Smear

N/A

Recording System

Still Picture and Movie

Cooling System*

Natural

OPERATING ENVIRONMENT

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Microsoft Windows XP / Vista / 7 / 8 (32 & 64 bit)

Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17 or Larger

CD-ROM
